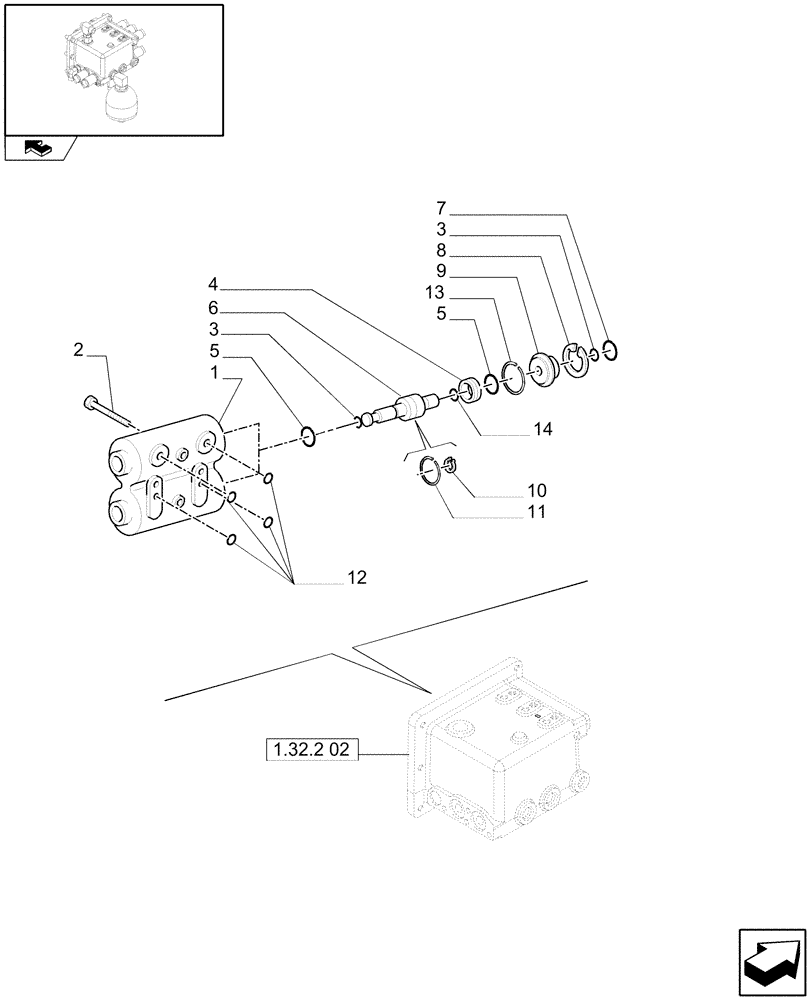

Запчасти Case IH PUMA 140 (1.32.2[04]) - TRANSMISSION 18X6 OR 19X6 - REDUCTION UNIT VALVE BLOCK - PISTONS AND CYLINDERS (03) - TRANSMISSION

1

5169152

BODY

1шт.

2

16324624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8

2шт.

3

14457581

O-RING,0.799" ID x 0.103" Width

4шт.

4

5169154

RING,20mm ID x 44.9mm OD x 11.5mm Thk

2шт.

5

5164866

SEAL,45mm OD x 4.2mm Thk

4шт.

6

5177563

PISTON

2шт.

7

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2шт.

8

11060976

SNAP RING,M60, Int

2шт.

9

5169155

PLUG,20mm ID x 60mm OD x 23mm L

2шт.

10

370024

CIRCLIP,M20, Ext

2шт.

11

13399076

CIRCLIP,39mm ID x 42mm OD

2шт.

12

14456881

O-RING,0.362" ID x 0.103" Width

4шт.

13

5164877

CIRCLIP,3.2mm Thk

2шт.

14

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

2шт.
