Запчасти Case IH PUMA 140 (1.32.2[03]) - TRANSMISSION 18X6 OR 19X6 - REDUCTION UNIT VALVE BLOCK - SUPPORT RELATED PARTS (03) - TRANSMISSION

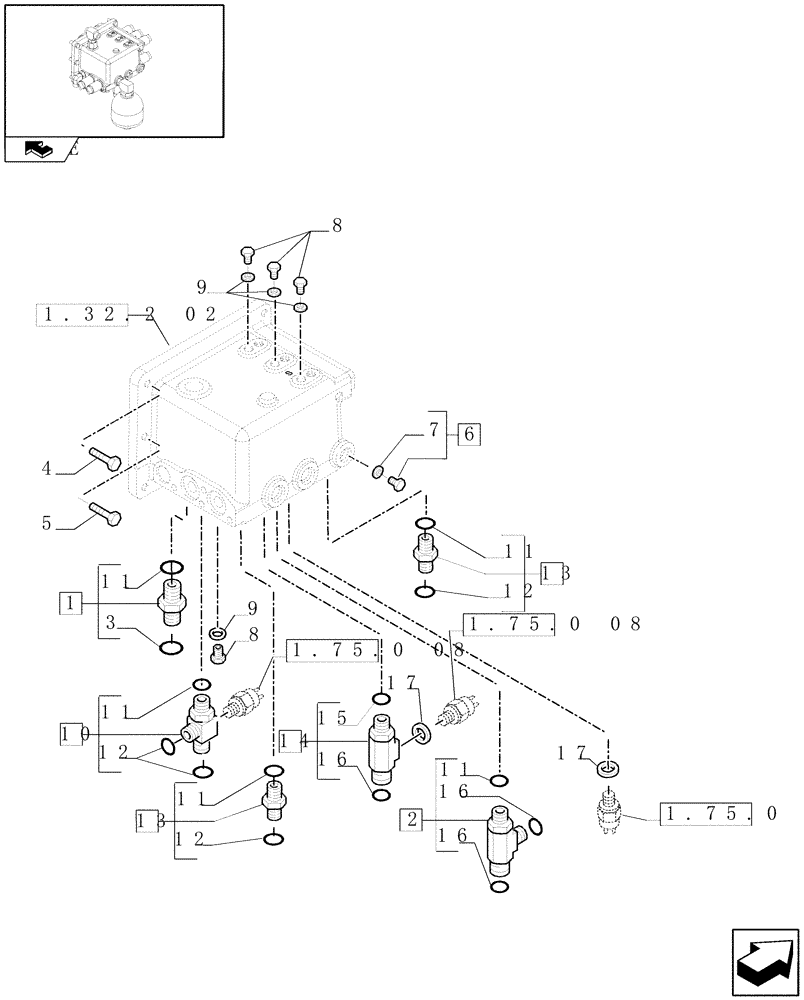

Схема запчастей Case IH PUMA 140 - (1.32.2[03]) - TRANSMISSION 18X6 OR 19X6 - REDUCTION UNIT VALVE BLOCK - SUPPORT RELATED PARTS (03) - TRANSMISSION
11
16
16
7
14
11
3
13
17
4
12
8
13
10
11
9
home
1.75.0 08
1.75.0 08
1.75.0 08
1.32.2 02
12
8
12
15
9
16
2
11
11
17
5
6
1

Артикул

Название

Примечание

Количество

1

5185041

HYD CONNECTOR,1"3/16-12 ORFS x M22 x 1.5 ORB

1-3/16"-12, M22 x 1.5

1шт.

2

5187064

TEE

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

5

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

6

10118740

PLUG,M14 x 1.5 x 15, Brass

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

8

11903011

PLUG,M10 x 1 x 11, Cl5.8

4шт.

9

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

D=10

4шт.

10

87314182

HYD CONNECTOR,11/16-16 ORFS x 11/16-16 ORFS x M16 x 1.5 ORB

M16 x 1.5 11/16-16

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

13

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, 11/16-16

2шт.

14

87575165

HYD CONNECTOR,1"-14 x M8 x 1.5

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 17
