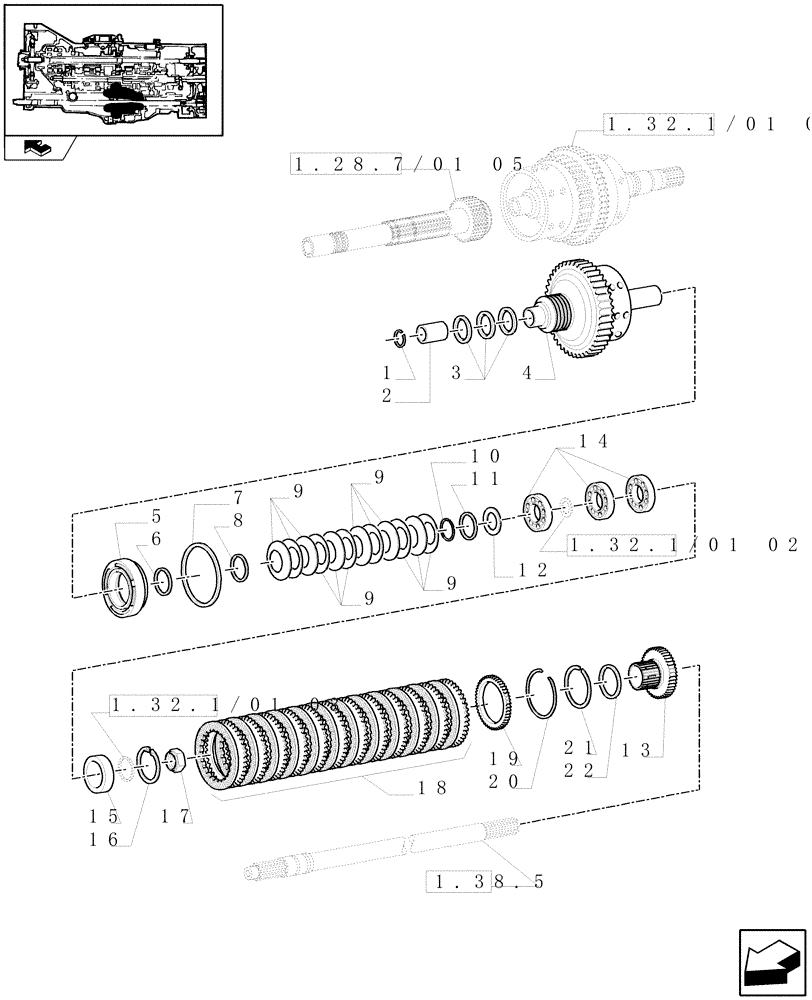

Запчасти Case IH PUMA 140 (1.32.1/01[01]) - FULL POWER-SHIFT TRANSM. 18X6 AND 19X6 - CENTRAL REDUCTION GEARS (VAR.330285) (03) - TRANSMISSION

1

13421876

CIRCLIP,42mm ID x 45 OD

1шт.

2

5172261

SPACER,38mm ID x 42.5mm OD x 130mm L

1шт.

3

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

3шт.

4

84309006

HUB

Incl. 1, 2

1шт.

5

5187424

PISTON

1шт.

6

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

7

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

8

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

61 x 85 x 3

1шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

12шт.

10

5175981

CIRCLIP,1.5mm Thk

1шт.

11

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

60 x 70 x 3

1шт.

12

87673443

SPACER,55.01mm ID x 89.73mm OD x 6.5mm L

1шт.

13

87629846

DRIVING GEAR,41T, 51T, 52T

1шт.

14

5187264

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

55 x 90 x 23

4шт.

15

5179538

SPACER,78mm ID x 89.8mm OD x 15.75mm L

78 x 89.6/89.8 x 15.75

1шт.

16

11062476

SNAP RING,M90, Int

1шт.

17

5187828

NUT,Hex, M55 x 1.5, 20 Thd

M55 x 1.5 x 20

1шт.

18

87530794

CLUTCH PACK

1шт.

19

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

20

47132979

CIRCLIP,2mm Thk

1шт.

21

5179124

CIRCLIP

1шт.

22

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.
