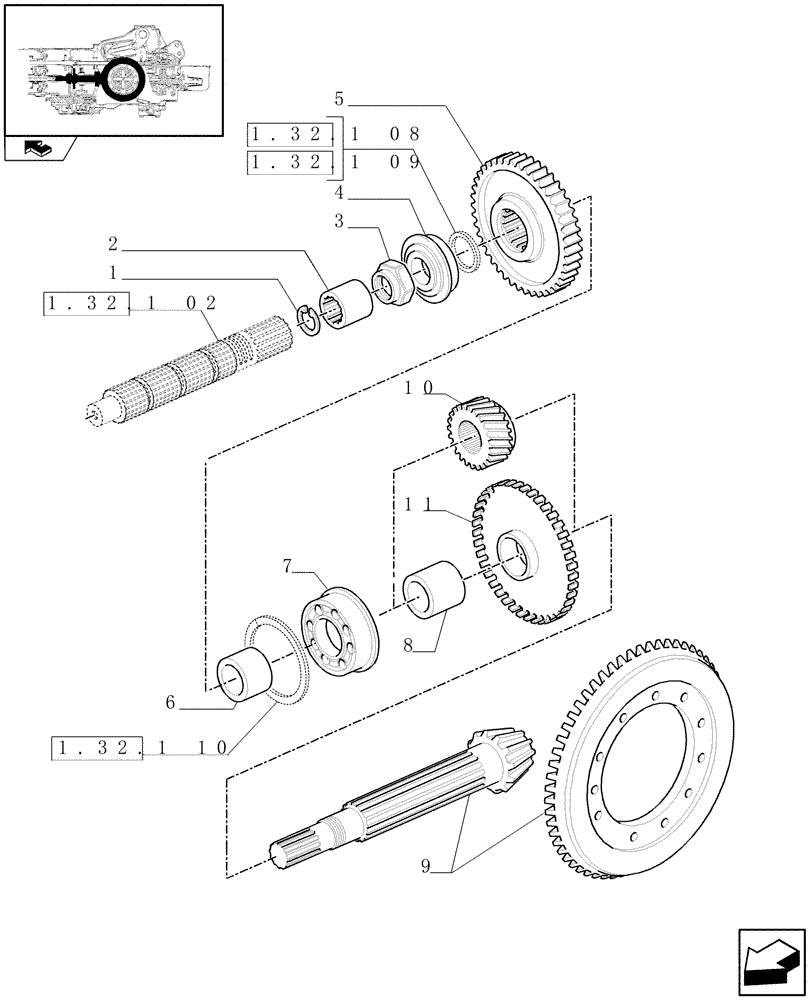

Запчасти Case IH PUMA 140 (1.32.1[03]) - CENTRAL REDUCTION GEARS AND BEVEL GEAR PAIR (03) - TRANSMISSION

1

11059776

SNAP RING,M38, Int

1шт.

2

5176850

SLEEVE,20T

1шт.

3

5147930

RING NUT,M45 x 1.5

x 17 M45 x 1.5

1шт.

4

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

45 x 100 x 27.25

1шт.

5

5163666

DRIVING GEAR,Z43

4WD

1шт.

Puma 125, Puma 140

1шт.

5

5171890

GEAR,Z48

4WD

1шт.

Puma 155

1шт.

6

5145129

SPACER,55mm ID x 70mm OD x 42.5mm L

55 x 70 x 42.5

1шт.

7

5111271

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

60 x 130 x 48.5

1шт.

8

5185558

SPACER,55mm ID x 74mm OD x 79mm L

55 x 74 x 79

1шт.

9

5162572

BEVEL GEAR,10/43 Ratio

(RATIO 10/43)

1шт.

Puma 125, Puma 140

1шт.

9

87559710

BEVEL GEAR,11/43 Ratio

Ratio 11/43

1шт.

Puma 155

1шт.

10

87677236

PINION,Z29

40E/50KM/H

1шт.

11

5183202

GEAR,Z47

1шт.
