Запчасти Case IH PUMA 140 (1.29.7/06) - FULL POWER SHIFT (50KM/H) - VALVE AND PIPES (VAR.332247) (03) - TRANSMISSION

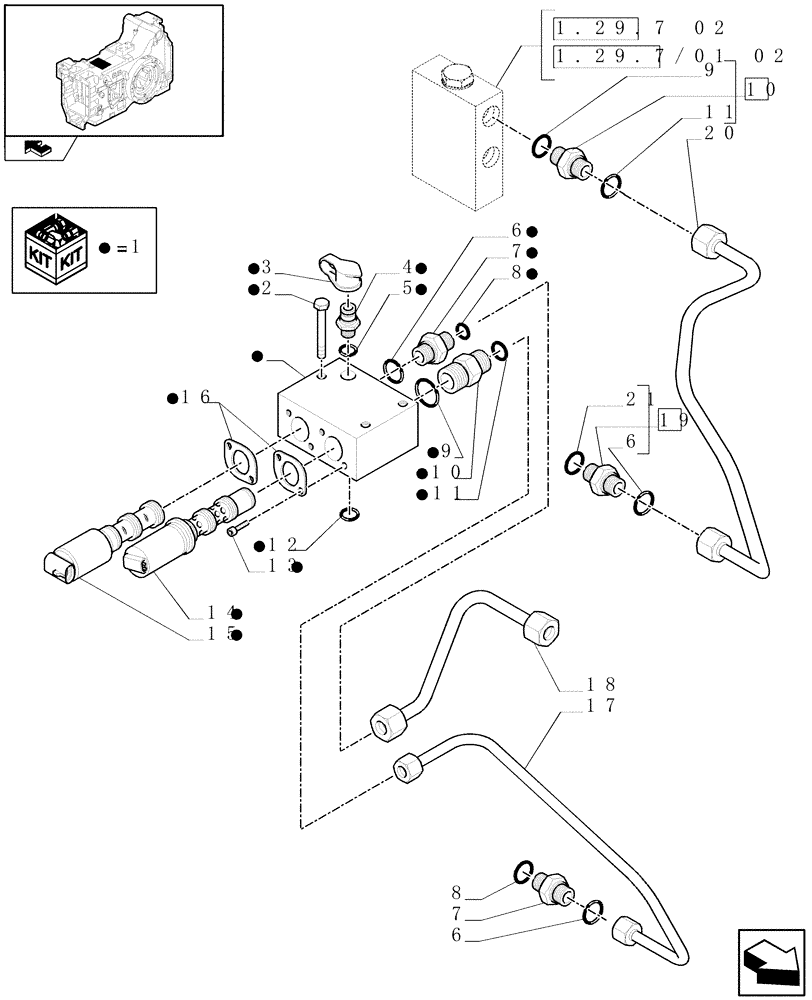

Схема запчастей Case IH PUMA 140 - (1.29.7/06) - FULL POWER SHIFT (50KM/H) - VALVE AND PIPES (VAR.332247) (03) - TRANSMISSION
1
6
15
17
1
6
19
1.29.7/01 02
1.29.7 02
home
1
1
1
8
2
11
10
1
1
1
7
6
12
10
8
18
20
7
1
1
9
1
1
21
5
14
1
11
16
13
3
4
1
1
1
9
1
1

Артикул

Название

Примечание

Количество

1

87315602

HYDRAULIC VALVE

ASSY

1шт.

2

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

3шт.

3

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

4

5185423

COUPLING

Incl. 5

1шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

7

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

2шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

10

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

13

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

14

87577678

SOLENOID

1шт.

15

87723774

SOLENOID VALVE

, Serial Range: -C6743

1шт.

15

84276869

SOLENOID

, Start Serial: D6743

1шт.

16

5194826

BRACKET

2шт.

17

87519138

PIPE

Lubrification

1шт.

18

87519127

PIPE

Front

1шт.

19

87519126

HYD CONNECTOR,13/16"-16 x M16 x 1.5

1шт.

20

87661022

PIPE

Rear Lubrification

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

Выбрано товаров: 22
