Запчасти Case IH PUMA 140 (1.29.7/02[01A]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX TOP COVER LUBRICATION PIPES - SERVICE KIT (VAR.330285) (03) - TRANSMISSION

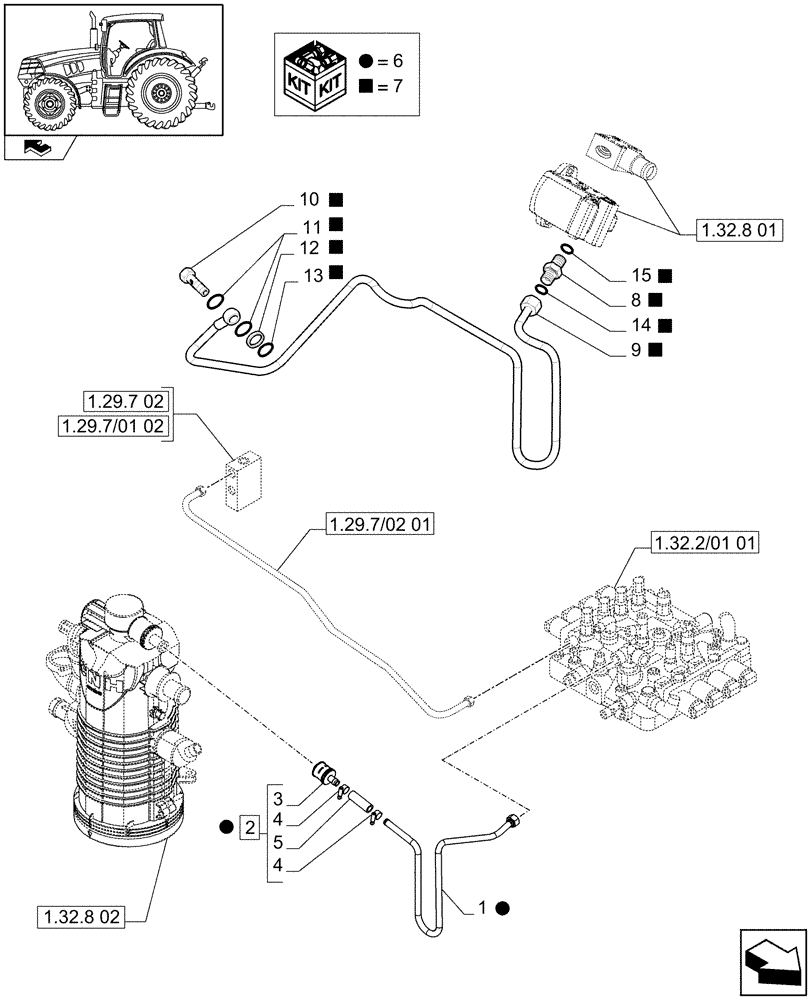

Схема запчастей Case IH PUMA 140 - (1.29.7/02[01A]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX TOP COVER LUBRICATION PIPES - SERVICE KIT (VAR.330285) (03) - TRANSMISSION
7
11
14
7
1.29.7 02
1.32.8 01
4
1.32.8 02
home
8
3
1
7
7
7
7
1.29.7/02 01
7
13
7
6
7
6
10
7
5
6
9
15
2
6
1.29.7/01 02
4
1.32.2/01 01
12

Артикул

Название

Примечание

Количество

1

84352738

HYD TUBE

Added Lube

1шт.

2

84352585

HYD CONNECTOR

1шт.

3

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

4

82039344

HOSE CLAMP,20mm - 32mm

2шт.

5

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

6

710083280001

SERVICE KIT

Contains Ref. 1-5

1шт.

For Higher Performance on Power Steering at Start up

1шт.

7

710083280002

SERVICE KIT

Contains Ref. 8-15

1шт.

For Higher Performance on Power Steering at Start up

1шт.

8

84466553

HYD CONNECTOR

1шт.

9

84466454

HYD TUBE

1шт.

For 19 CCM Steering Pump

1шт.

9

84466456

HYD TUBE

1шт.

For 25 CCM Steering Pump

1шт.

10

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

11

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

12

84398569

SPACER,18.5mm ID x 24.5mm OD x 5mm L

1шт.

13

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

14

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 20
