(1.29.7/02[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX TOP COVER LUBRICATION PIPES (VAR.330285)

Запчасти Case IH PUMA 140 (1.29.7/02[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX TOP COVER LUBRICATION PIPES (VAR.330285) (03) - TRANSMISSION

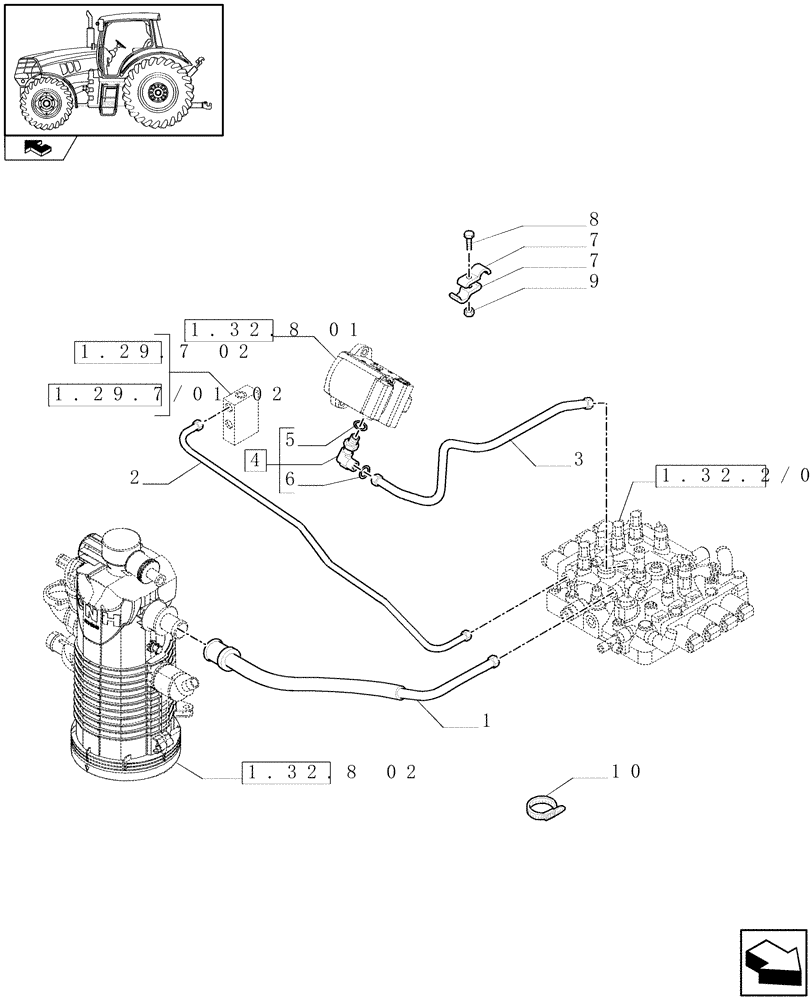

Схема запчастей Case IH PUMA 140 - (1.29.7/02[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX TOP COVER LUBRICATION PIPES (VAR.330285) (03) - TRANSMISSION
4
3
7
9
7
1.32.2/01 01
8
10
1
6
1.29.7 02
1.29.7/01 02
1.32.8 01
1.32.8 02
home
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519152

PIPE

Added Lube

1шт.

See Figure Note

1шт.

2

87519153

PIPE

Front Lube

1шт.

3

87580031

PIPE

Residual Flow

1шт.

4

5185562

ELBOW

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

5156374

CLAMP

2шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

9

12574221

NUT,M6 x 1, Cl 10

1шт.

10

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.
