Запчасти Case IH PUMA 140 (1.29.7[02]) - LIFT CYLINDER LUBRICATION PIPES AND REAR LUBRICATION BLOCK (03) - TRANSMISSION

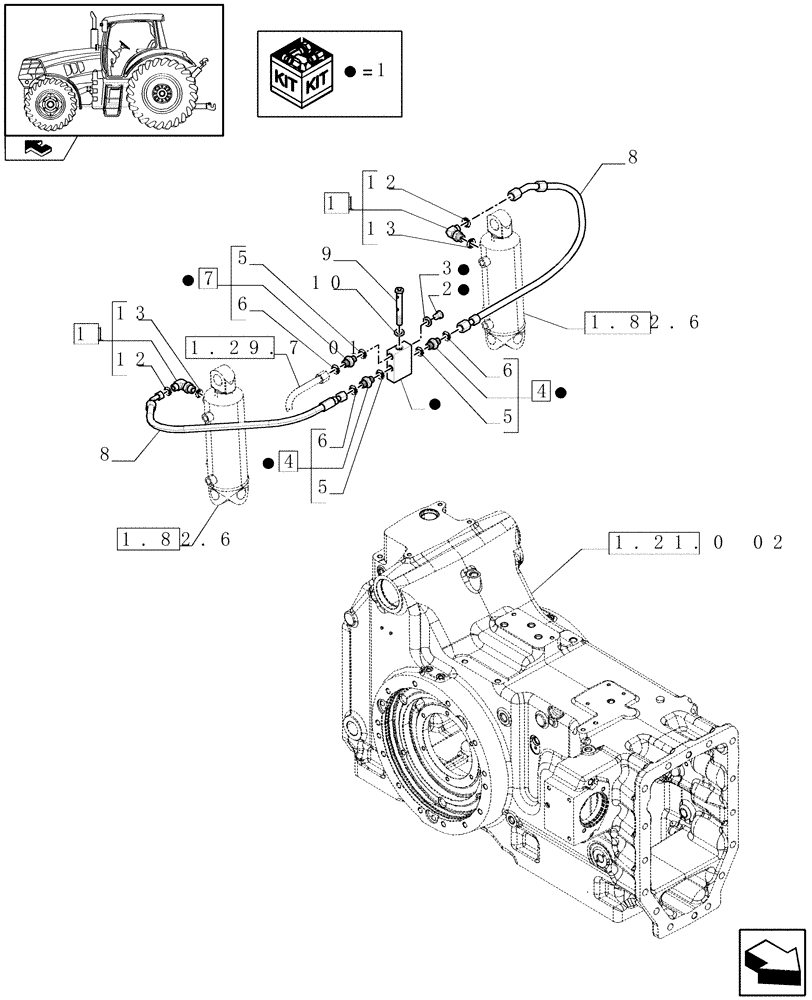

Схема запчастей Case IH PUMA 140 - (1.29.7[02]) - LIFT CYLINDER LUBRICATION PIPES AND REAR LUBRICATION BLOCK (03) - TRANSMISSION
4
1
11
1.21.0 02
home
1.29.7 01
1.82.6
1.82.6
11
6
2
1
1
9
3
5
6
1
13
10
5
1
7
6
1
5
8
4
1
13
1
12
12
8

Артикул

Название

Примечание

Количество

1

87570548

BLOCK

ASSY

1шт.

2

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

2шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

8

87519175

HOSE,9.5mm ID x 800mm L, SAE 100R16

2шт.

Cylinder Lubrication

1шт.

9

87519177

BANJO BOLT,M16 x 1 x 115mm

1шт.

10

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

2шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

Выбрано товаров: 14
