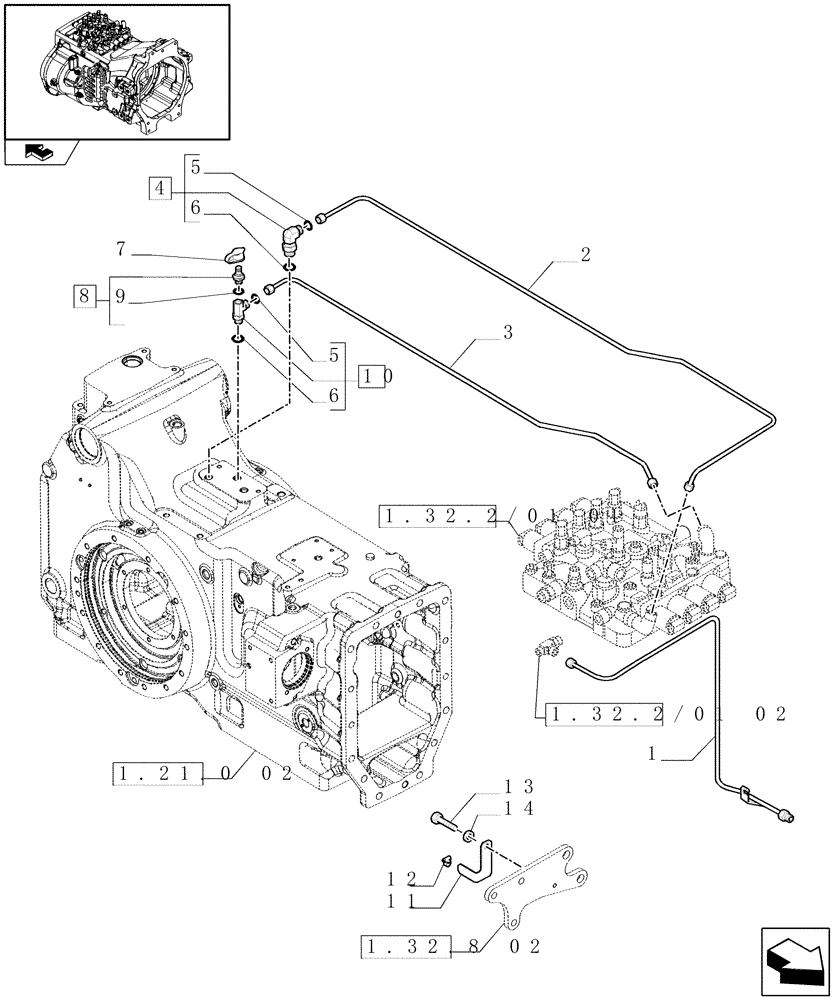

Запчасти Case IH PUMA 140 (1.29.6/01[04]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - LOW PRESSURE GEARBOX CONTROL PIPES (VAR.330285) (03) - TRANSMISSION

1

87519147

PIPE

1шт.

Front Differential Lock

1шт.

2

87519113

PIPE

1шт.

From Solenoid Valve to PTO Brake

1шт.

3

87519121

PIPE

1шт.

Supply to Rear PTO Clutch

1шт.

4

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

1шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

7

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

8

5185423

COUPLING

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

10

87690352

HYD CONNECTOR,11/16"-16 x M16 x 1.5 x M14 x 1.5

1шт.

11

87519170

BRACKET

1шт.

12

14582480

CLIP

2шт.

13

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

14

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
