Запчасти Case IH PUMA 140 (1.29.6[02]) - LOW PRESSURE GEARBOX CONTROL PIPES (03) - TRANSMISSION

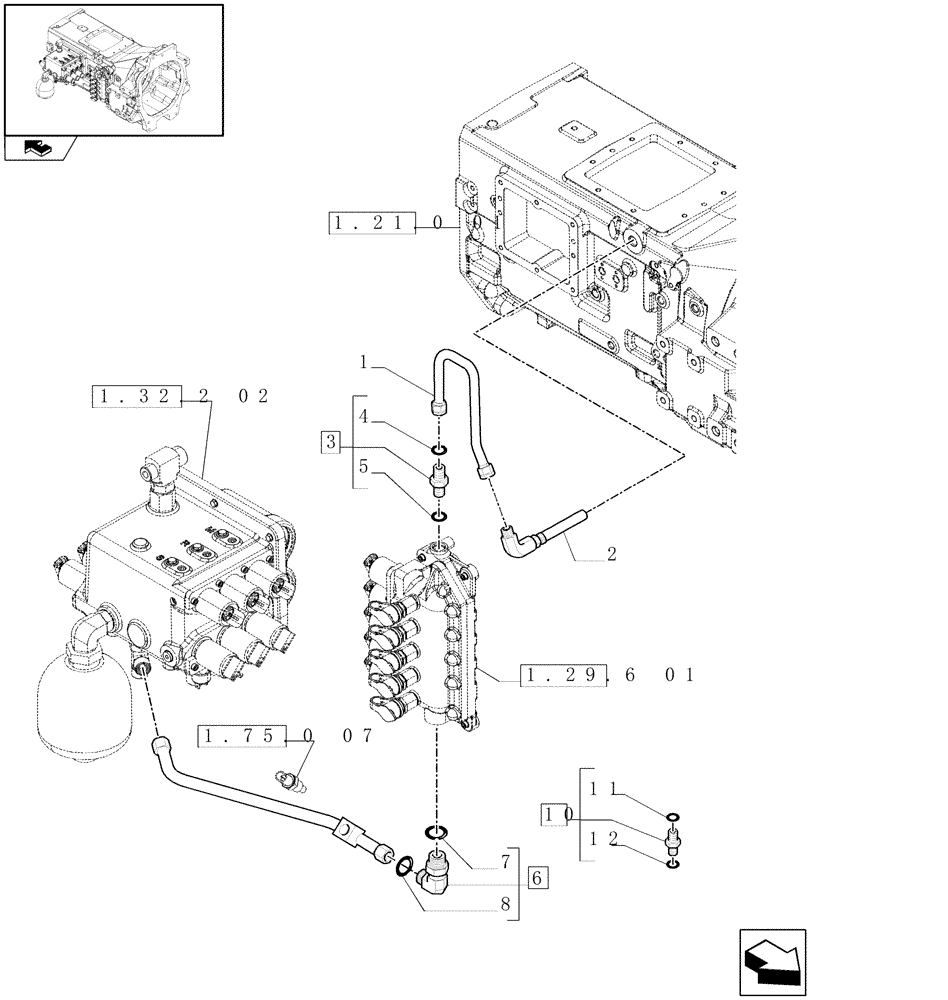

Схема запчастей Case IH PUMA 140 - (1.29.6[02]) - LOW PRESSURE GEARBOX CONTROL PIPES (03) - TRANSMISSION
12
11
8
home
1.29.6 01
1.21.0 01
1.75.0 07
1.32.2 02
10
4
2
5
6
7
3
1

Артикул

Название

Примечание

Количество

1

87671394

PIPE

A Clutch

1шт.

2

87574620

HYD CONNECTOR,13/16"-16 x M18 x 1.5

1шт.

3

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

87687004

PIPE

1шт.

From Accumulator to Power Shift Control Valve

1шт.

10

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

Выбрано товаров: 13
