Запчасти Case IH PUMA 140 (1.28.7/03[07]) - SEMI POWER SHIFT (50KM/H) - SPEED GEARS AND CLUTCHES - GEARS (VAR.331247) (03) - TRANSMISSION

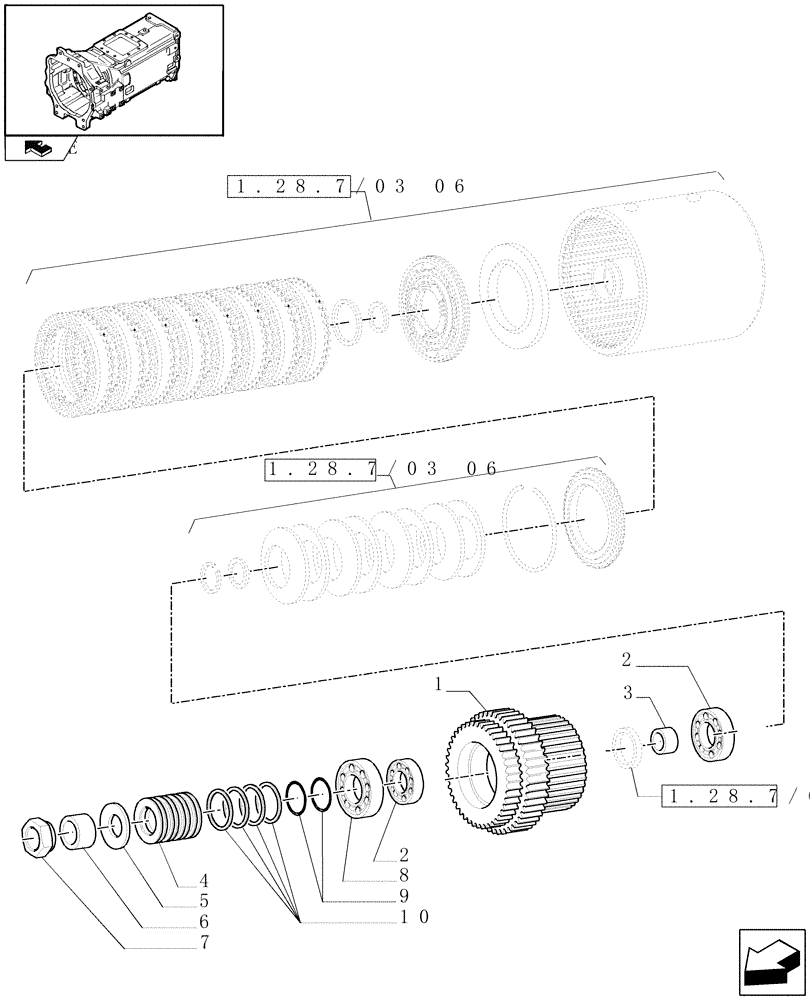

Схема запчастей Case IH PUMA 140 - (1.28.7/03[07]) - SEMI POWER SHIFT (50KM/H) - SPEED GEARS AND CLUTCHES - GEARS (VAR.331247) (03) - TRANSMISSION
8
9
5
4
6
10
home
1.28.7/03 09
1.28.7/03 06
1.28.7/03 06
1
2
2
3
7

Артикул

Название

Примечание

Количество

1

5167826

DRIVEN GEAR,50T, 52T, 52T

I - II Speed Driven Gear

1шт.

2

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

45 x 75 x 20

2шт.

3

5167099

SPACER,45.1mm ID x 56mm OD x 24.5mm L

1шт.

4

5187957

MANIFOLD

1шт.

5

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

6

5177809

SPACER,45mm ID x 55mm OD x 25.5mm L

1шт.

7

5147930

RING NUT,M45 x 1.5

1шт.

8

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

45 X 85 X 19

1шт.

9

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

10

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.

Выбрано товаров: 10
