Запчасти Case IH PUMA 140 (1.28.7/01[06]) - FULL POWER-SHIFT TRANSM. 18X6 AND 19X6 - "C" AND "D" CLUTCHES (VAR.330285) (03) - TRANSMISSION

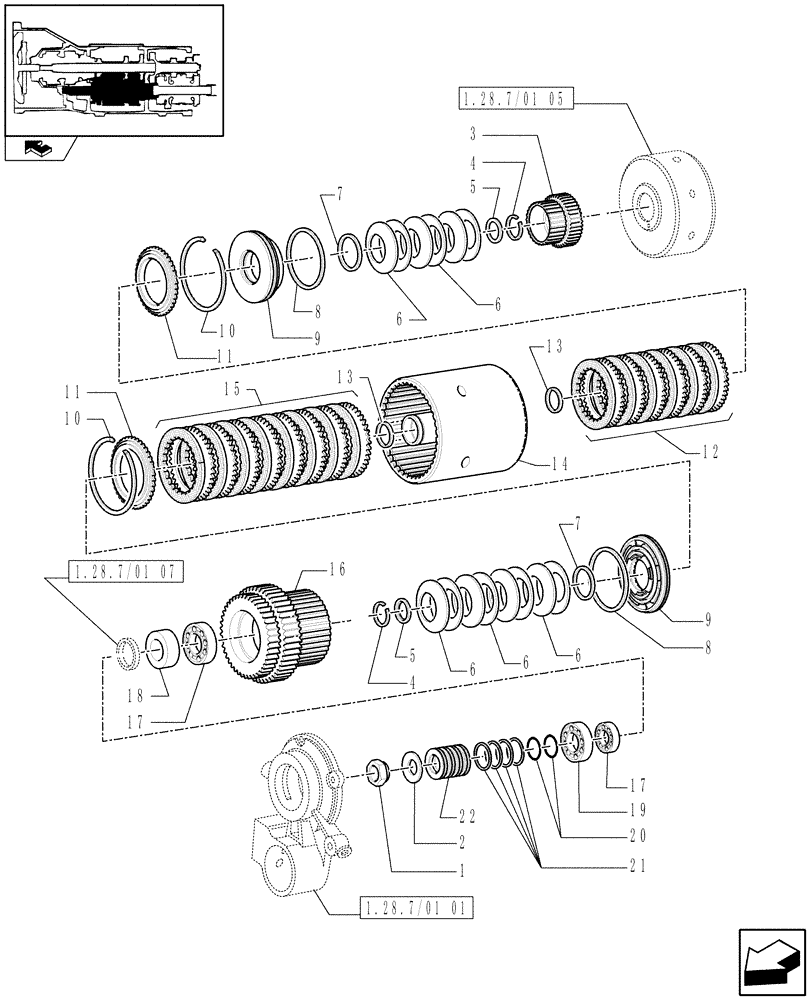

Схема запчастей Case IH PUMA 140 - (1.28.7/01[06]) - FULL POWER-SHIFT TRANSM. 18X6 AND 19X6 - "C" AND "D" CLUTCHES (VAR.330285) (03) - TRANSMISSION
8
6
9
10
16
21
1
19
5
12
5
6
13
18
15
1.28.7/01 05
home
1.28.7/01 07
1.28.7/01 01
11
22
6
11
7
4
3
4
7
8
13
2
17
9
14
20
6
10
17
6

Артикул

Название

Примечание

Количество

1

5147930

RING NUT,M45 x 1.5

1шт.

2

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

3

5167830

DRIVEN GEAR,45T, 52T

III-IV SPEED

1шт.

4

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

14шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

3шт.

9

87547824

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

Clutch Plates

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1шт.

15

87530789

CLUTCH PACK

Clutch Plates

1шт.

16

5167826

DRIVEN GEAR,50T, 52T, 52T

I-II SPEED

1шт.

17

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

45 x 75 x 20

2шт.

18

5167099

SPACER,45.1mm ID x 56mm OD x 24.5mm L

1шт.

19

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

20

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

21

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.

22

5187957

MANIFOLD

1шт.

Выбрано товаров: 22
