Запчасти Case IH PUMA 140 (1.28.7[06]) - TRASM. 18X6 OR 19X6 (40KM/H) SPS - SPEED GEARS AND CLUTCHES - "C" AND "D" CLUTCHES (03) - TRANSMISSION

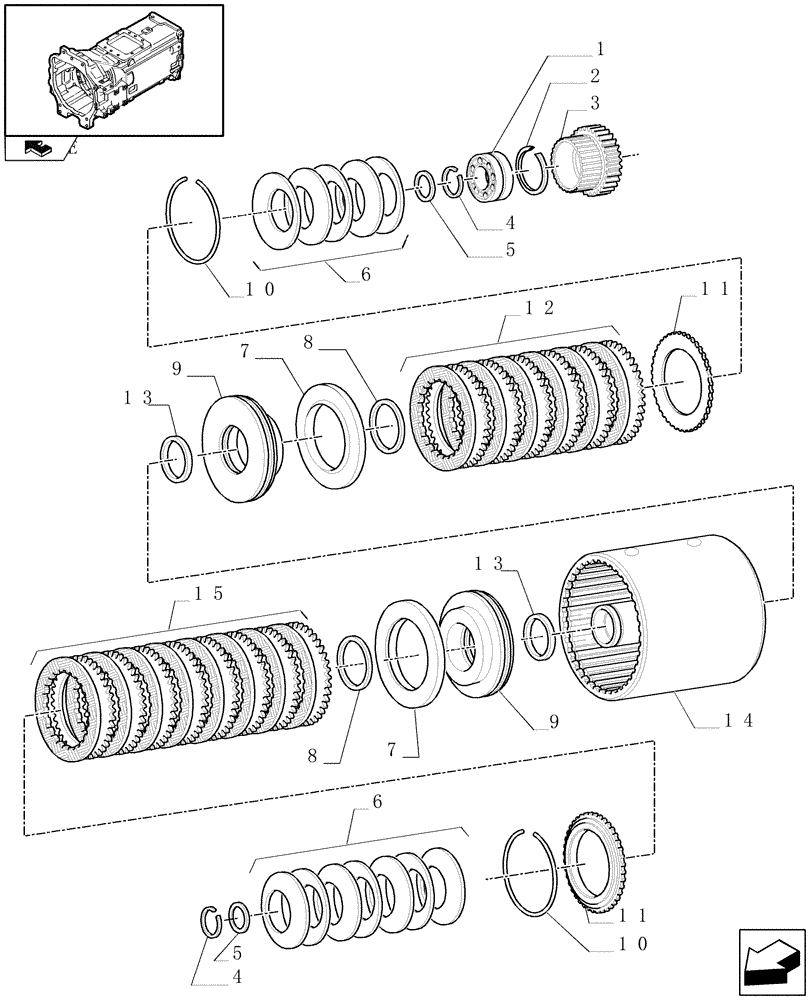

Схема запчастей Case IH PUMA 140 - (1.28.7[06]) - TRASM. 18X6 OR 19X6 (40KM/H) SPS - SPEED GEARS AND CLUTCHES - "C" AND "D" CLUTCHES (03) - TRANSMISSION
10
5
11
13
7
6
1
4
14
6
12
home
4
3
10
2
5
8
7
15
9
8
11
9
13

Артикул

Название

Примечание

Количество

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

50 x 80 x 32

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5167830

DRIVEN GEAR,45T, 52T

III-IV SPEED

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

14шт.

7

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

8

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

9

87547824

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

Clutch Plates

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1шт.

15

87530789

CLUTCH PACK

Clutch Plates

1шт.

Выбрано товаров: 15
