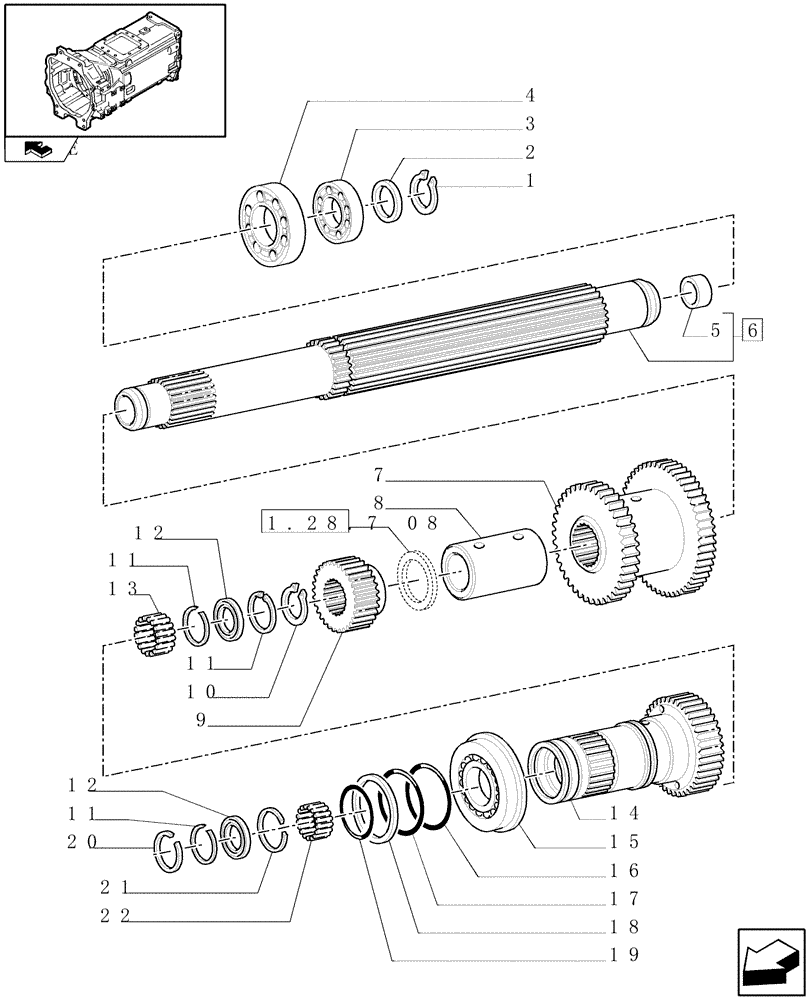

Запчасти Case IH PUMA 140 (1.28.7[04]) - TRASM. 18X6 OR 19X6 (40KM/H) SPS - TOP DRIVING SHAFT AND GEARS (03) - TRANSMISSION

1

5138419

SNAP RING,M50

D=50

1шт.

2

5144962

THRUST WASHER,50.1mm ID x 62mm OD x 3mm Thk

1шт.

3

86570632

TAPERED BEARING,50mm ID x 90mm OD x 24.75mm W

50 x 90 x 24.75

1шт.

4

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

50 x 110 x 29.25

1шт.

5

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

6

5162246

DRIVEN SHAFT,24T, 26T

1шт.

7

47126213

GEAR,26T, 40T, 49T

III-IV-V-VI Speed

1шт.

8

5183725

SPACER,54.7mm ID x68mm OD x 103.75mm L

1шт.

9

5162233

DRIVEN GEAR,32T, 36T

I Speed

1шт.

10

5134792

SNAP RING,50.80mm ID, 3mm Thk

1шт.

11

5142178

SNAP RING,1.5mm Thk

3шт.

12

5162255

GASKET,50mm ID x 58mm OD x 4mm Thk

50 x 58 x 4

2шт.

13

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

50 x 58 x 25

1шт.

14

5164739

DRIVEN GEAR,37T, 46T

II Speed

1шт.

15

28996390

BALL BEARING,75mm x 130mm x 25mm

75 x 130 x 25

1шт.

16

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

1шт.

17

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

18

5162361

RING,66.83mm ID x 72.83mm OD x 1.27mm Thk

66.83 x 72.83 x 1.27 Thk

1шт.

19

14455480

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

20

5195945

SEALING RING,Split, 41.3mm ID x 45mm OD x 2.4mm Thk

SEALRING D=45

1шт.

21

5149933

SNAP RING,55mm, 1.5mm Thk, Int

1шт.

22

5162254

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

50 x 55 x 20

1шт.
