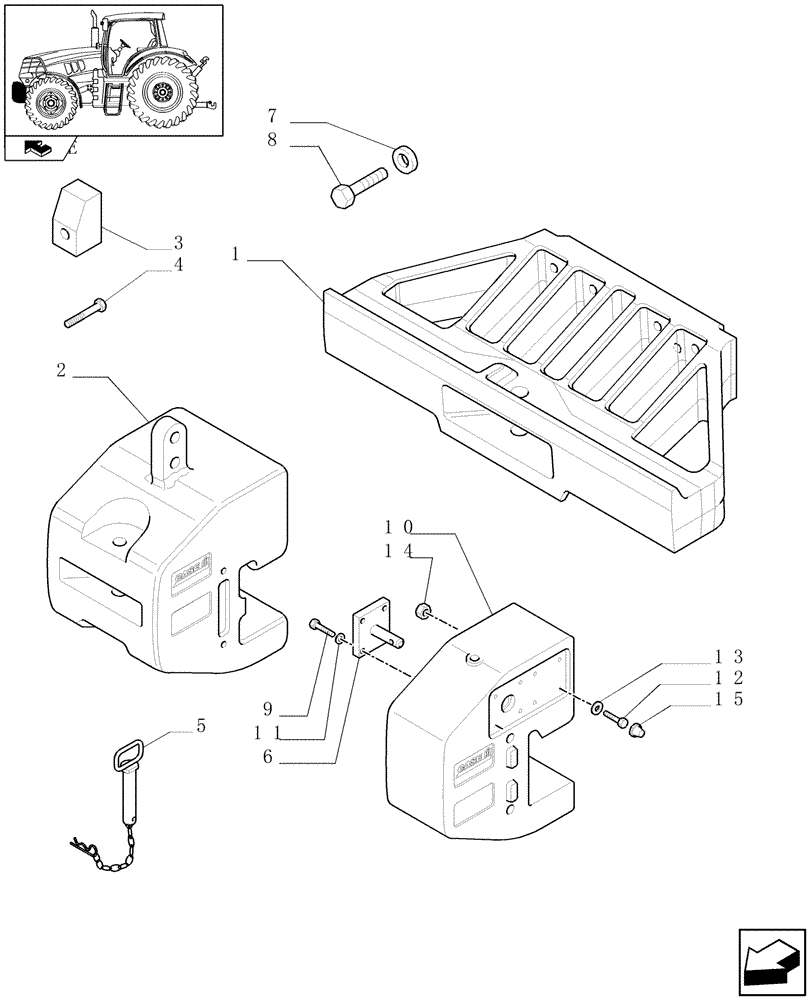

Запчасти Case IH PUMA 140 (1.21.5/01[01]) - FRONT WEIGHT CARRIER AND 3 LARGE WEIGHTS WITH PULL HOOK (VAR.330228) - C7196 (03) - TRANSMISSION

1

82031491

WEIGHT CARRIER

1шт.

2

87376053

WEIGHT

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

2шт.

5

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

6

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

7

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

8

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

9

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

10

87376051

WEIGHT

2шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

12

87377164

STUD,M20 x 2.5 x 270.00mm, Cl 8.8, ZND

4шт.

13

14497101

WASHER,M20 x 37 x 3

4шт.

14

12163511

NUT,M20, Cl 8

4шт.

15

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

2шт.

15

85700893

COVER

8шт.
