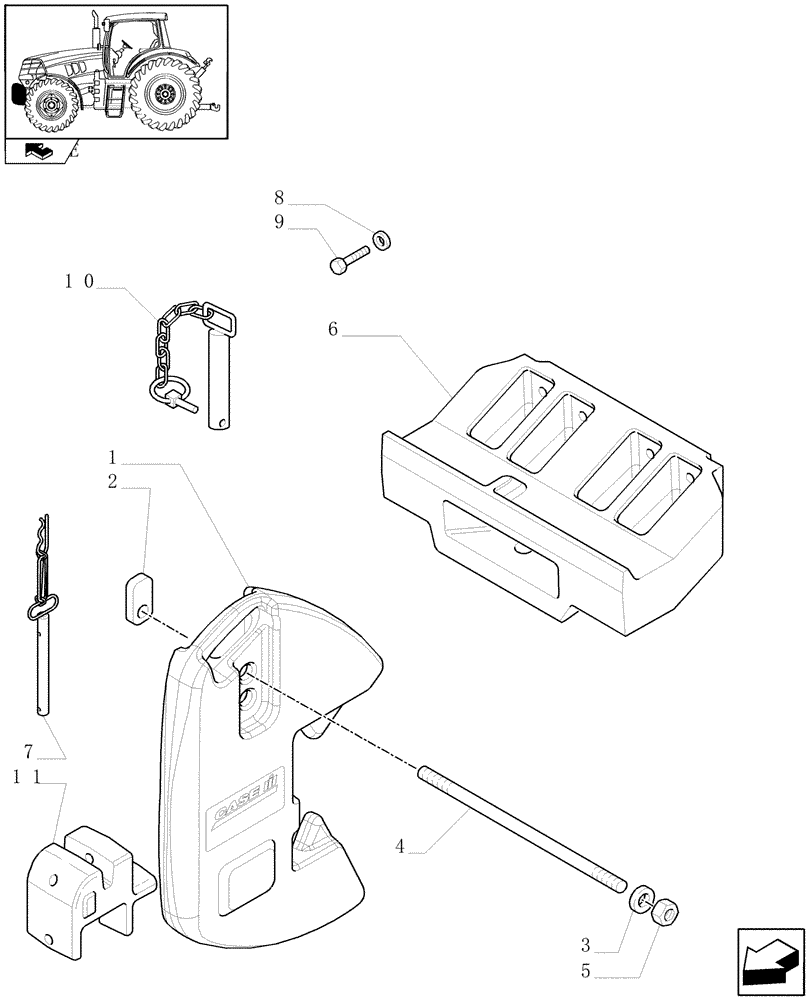

Запчасти Case IH PUMA 140 (1.21.5) - FRONT WEIGHT CARRIER AND 6 WEIGHTS WITH PULL HOOK (VAR.330224) (03) - TRANSMISSION

1

86988727

WEIGHT,45Kg

6шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

M16 x 610

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

M16 x 2

3шт.

6

82031499

WEIGHT CARRIER

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

8

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

9

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

10

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

11

82024272

SUPPORT,110Kg

1шт.
