Запчасти Case IH PUMA 140 (1.21.2[01A]) - SUSPENDED FRONT AXLE - SUSPENSION CONTROL VALVE AND PIPES - D6828 (VAR.330414-330427-330429-330430) (03) - TRANSMISSION

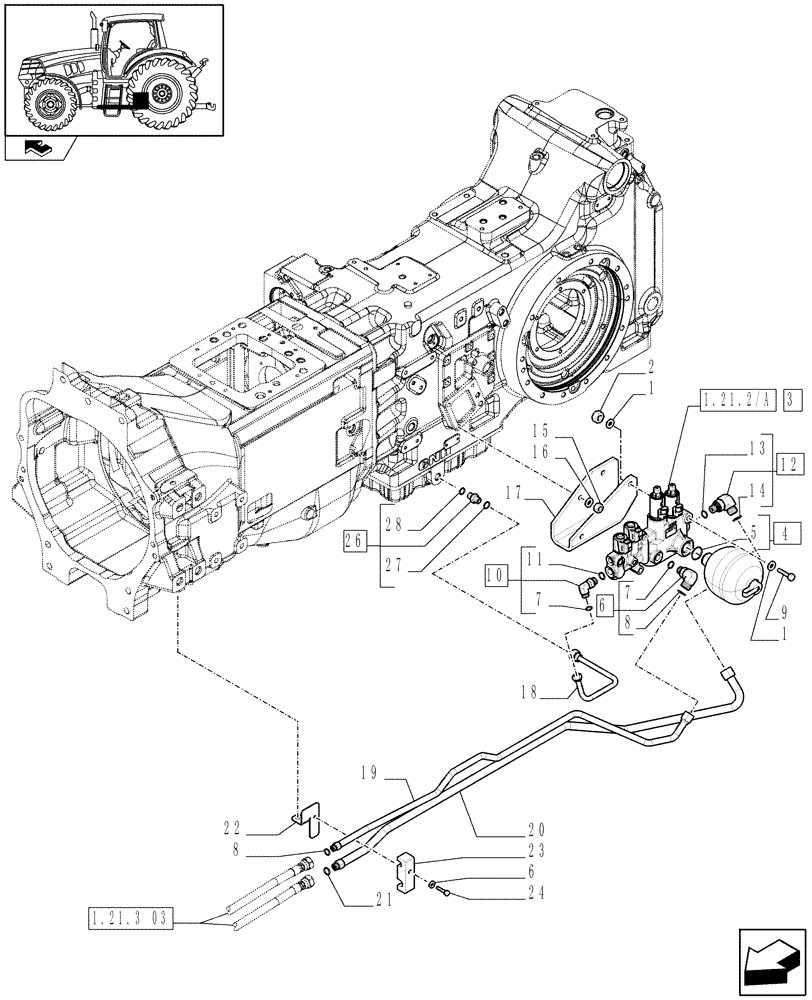

Схема запчастей Case IH PUMA 140 - (1.21.2[01A]) - SUSPENDED FRONT AXLE - SUSPENSION CONTROL VALVE AND PIPES - D6828 (VAR.330414-330427-330429-330430) (03) - TRANSMISSION
1
4
17
22
8
24
23
6
15
8
11
1.21.3 03
home
1.21.2/a
16
20
13
3
7
5
18
27
1
12
2
26
9
7
19
6
28
14
21
10

Артикул

Название

Примечание

Количество

1

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

2

16101521

NUT,M12 x 1.25, Cl 10

2шт.

3

87556424

HYDRAULIC VALVE

1шт.

4

82025705

ACCUMULATOR

1шт.

5

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

6

5185562

ELBOW

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

9992096

PUSH BUTTON

1шт.

9

15541521

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

10

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

12

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

15

12574521

LOCK NUT,M10 x 1.25, Cl 10

2шт.

16

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

2шт.

17

84338923

SUPPORT

1шт.

18

84177752

TUBE,12 mm OD

Valve Drain

1шт.

19

84339936

TUBE

Return. Incl. 8

1шт.

20

84339939

TUBE

Incl. 21

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

84140230

BRACKET

1шт.

23

87519166

CLAMP BRACKET

1шт.

24

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

25

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

26

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
