Запчасти Case IH PUMA 140 (1.21.1/03[02]) - INTEGRATED FRONT HPL FOR FRONT AXLE SUSPENSION - CAPS AND COVER PLATE (VAR.337831) (03) - TRANSMISSION

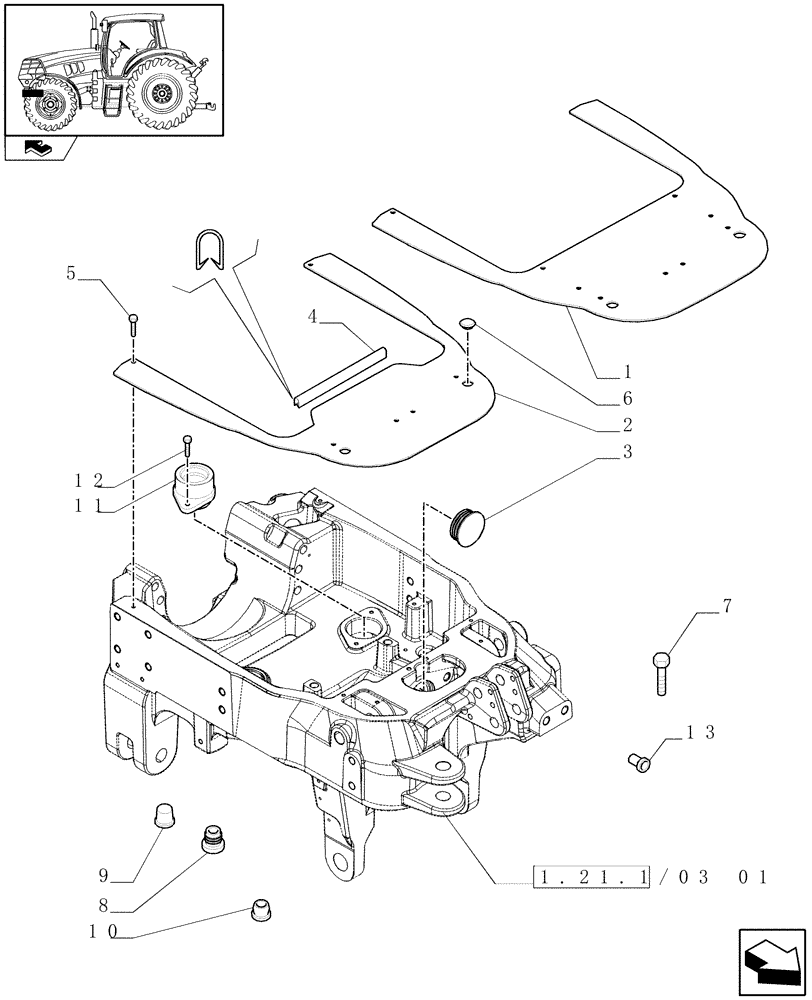

Схема запчастей Case IH PUMA 140 - (1.21.1/03[02]) - INTEGRATED FRONT HPL FOR FRONT AXLE SUSPENSION - CAPS AND COVER PLATE (VAR.337831) (03) - TRANSMISSION
8
1.21.1/03 01
home
1
12
3
11
9
4
7
6
2
13
5
10

Артикул

Название

Примечание

Количество

1

84168762

PLATE

1шт.

Puma 125, Puma 140

1шт.

2

87731103

COVER

1шт.

Puma 155

1шт.

3

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

4

83964601

MOLDING,164mm L

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

7

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

8

83908579

PLUG,M7.62

2шт.

9

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

10

87523187

PLUG,M12 x 1.5

2шт.

11

82030470

SUPPORT

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

Выбрано товаров: 15
