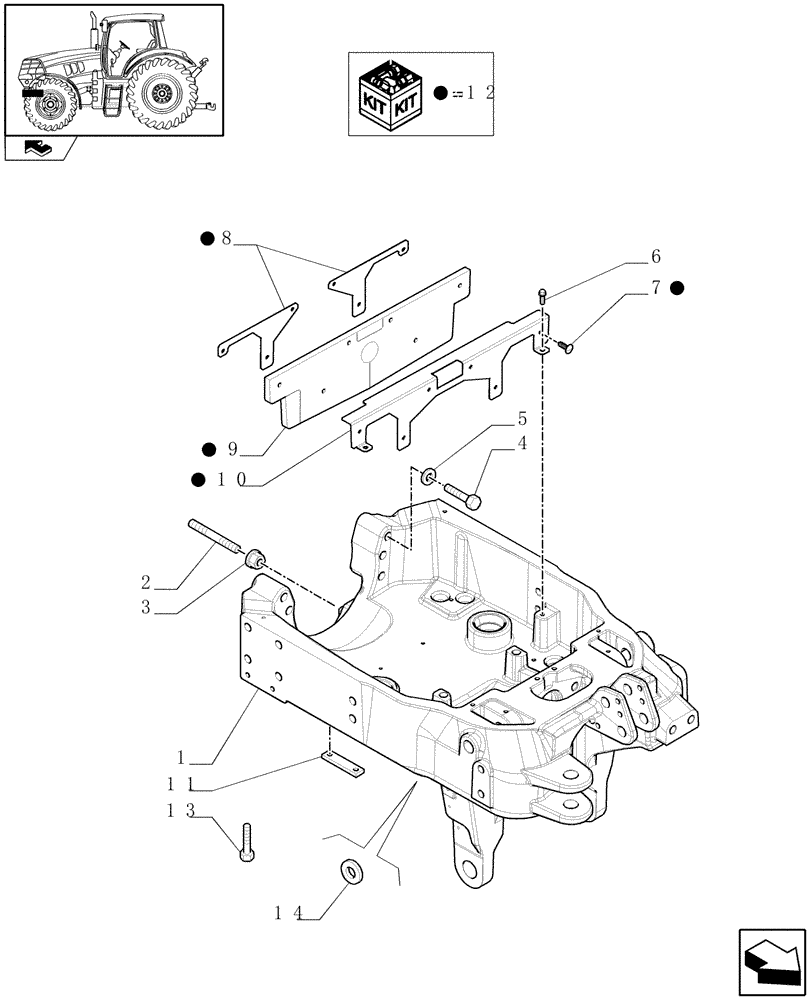

Запчасти Case IH PUMA 140 (1.21.1/02[01]) - INTEGRATED FRONT HPL - AXLE SUPPORT (VAR.336831) (03) - TRANSMISSION

1

84179062

SUPPORT

1шт.

2

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

2шт.

3

82023393

LOCK NUT

2шт.

4

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

6шт.

5

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

2шт.

6

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

7

87635853

STUD,7.1mm D

6шт.

8

87649703

DEFLECTOR

2шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

12

87731085

DEFLECTOR

ASSY, Serial Range: -C7146

1шт.

12

84382730

BAFFLE

, Start Serial: D7146

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

14

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

14

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

14

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

14

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

14

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

14

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

14

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

14

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

14

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

14

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

14

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.
