Запчасти Case IH PUMA 140 (1.21.1[01]) - SUPPORT FOR 4WD STANDARD FRONT AXLE - SUPPORT (03) - TRANSMISSION

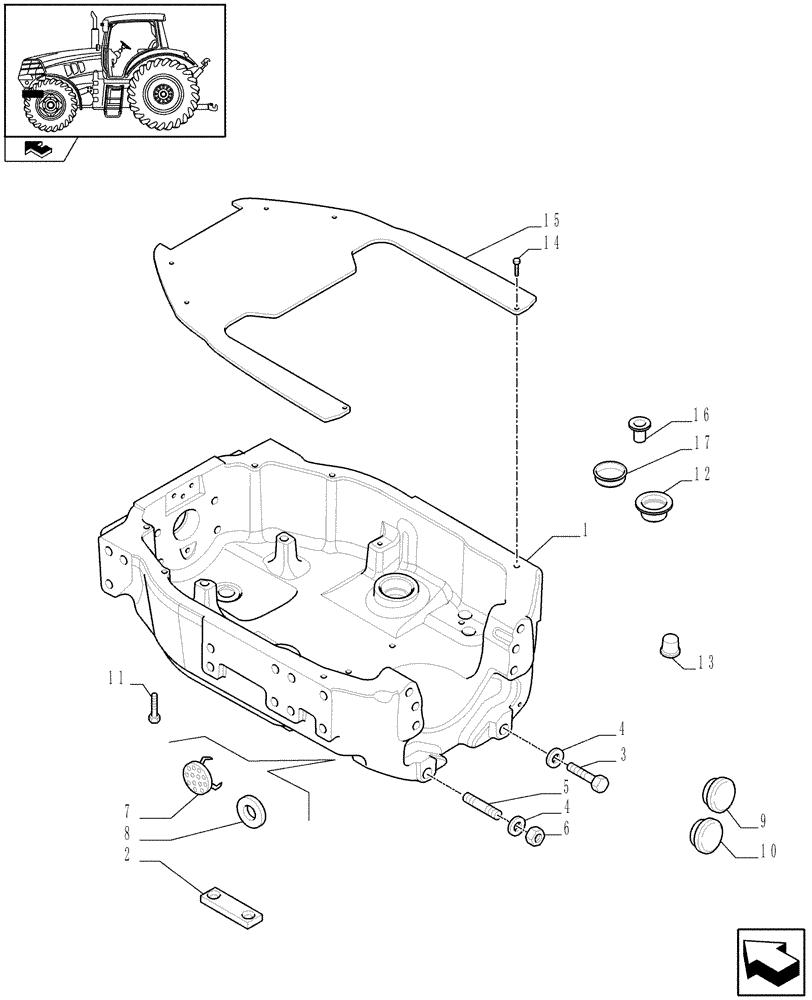

Схема запчастей Case IH PUMA 140 - (1.21.1[01]) - SUPPORT FOR 4WD STANDARD FRONT AXLE - SUPPORT (03) - TRANSMISSION
5
6
16
2
17
14
7
9
8
15
13
12
home
4
1
3
11
4
10

Артикул

Название

Примечание

Количество

1

87489657

SUPPORT

, Serial Range: -C6781

1шт.

1

84302305

SUPPORT

, Start Serial: D6781

1шт.

2

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

3

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

M20 x 1.5 x 118

6шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

8шт.

5

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

M20 x 1.5 x 170

2шт.

6

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

M20 x 1.5

2шт.

7

82021866

GRILLE

1шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

10

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

1шт.

10

82013380

CAP COVER

4шт.

11

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

12

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

D=22

8шт.

13

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

22шт.

13

85700614

DUST CAP,0.532", 0.750" OD, 0.437" D

4шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

15

84149362

PLATE

1шт.

16

82036858

COVER

7 x 10.5

2шт.

17

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

D=7

4шт.

Выбрано товаров: 31
