(1.21.0/01[02]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - REAR AXLE HOUSING AND INNER PIPES (VAR.330285)

Запчасти Case IH PUMA 140 (1.21.0/01[02]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - REAR AXLE HOUSING AND INNER PIPES (VAR.330285) (03) - TRANSMISSION

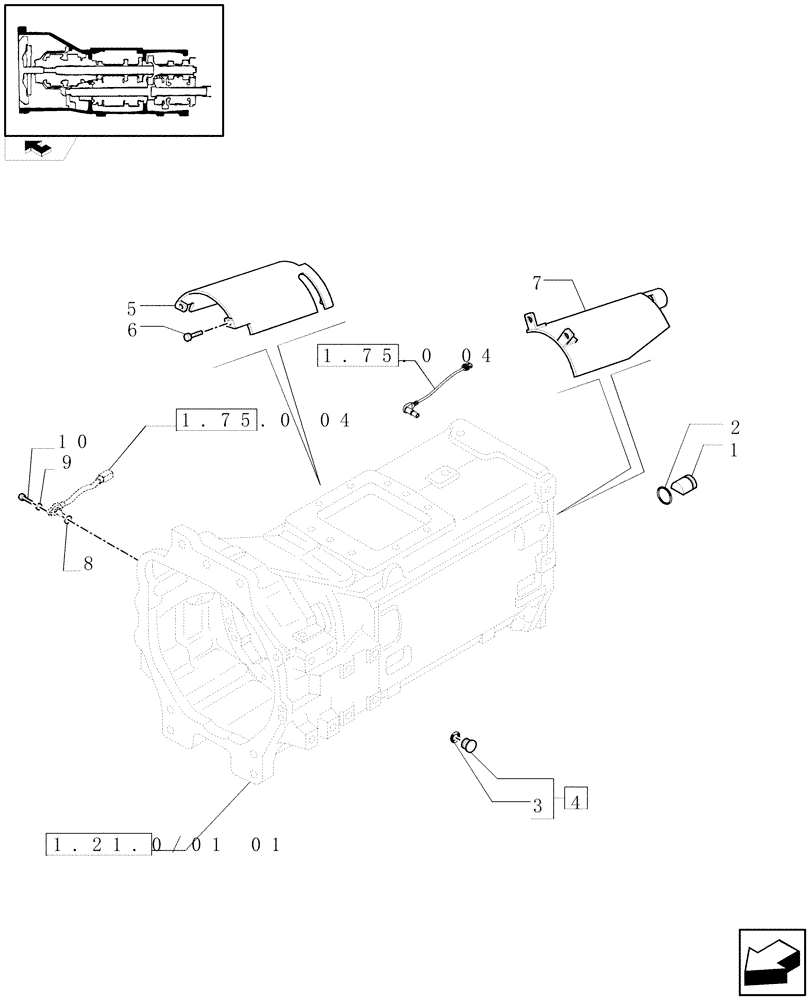

Схема запчастей Case IH PUMA 140 - (1.21.0/01[02]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - REAR AXLE HOUSING AND INNER PIPES (VAR.330285) (03) - TRANSMISSION
8
4
3
10
9
6
5
1
2
7
home
1.75.0 04
1.75.0 04
1.21.0/01 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87303551

PLUG

1шт.

2

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

10118740

PLUG,M14 x 1.5 x 15, Brass

1шт.

5

87559322

GUARD

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

5185307

GUARD

1шт.

8

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

3 x 17.2

2шт.

9

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

10

14305773

SCREW,M6 x 14mm

2шт.
