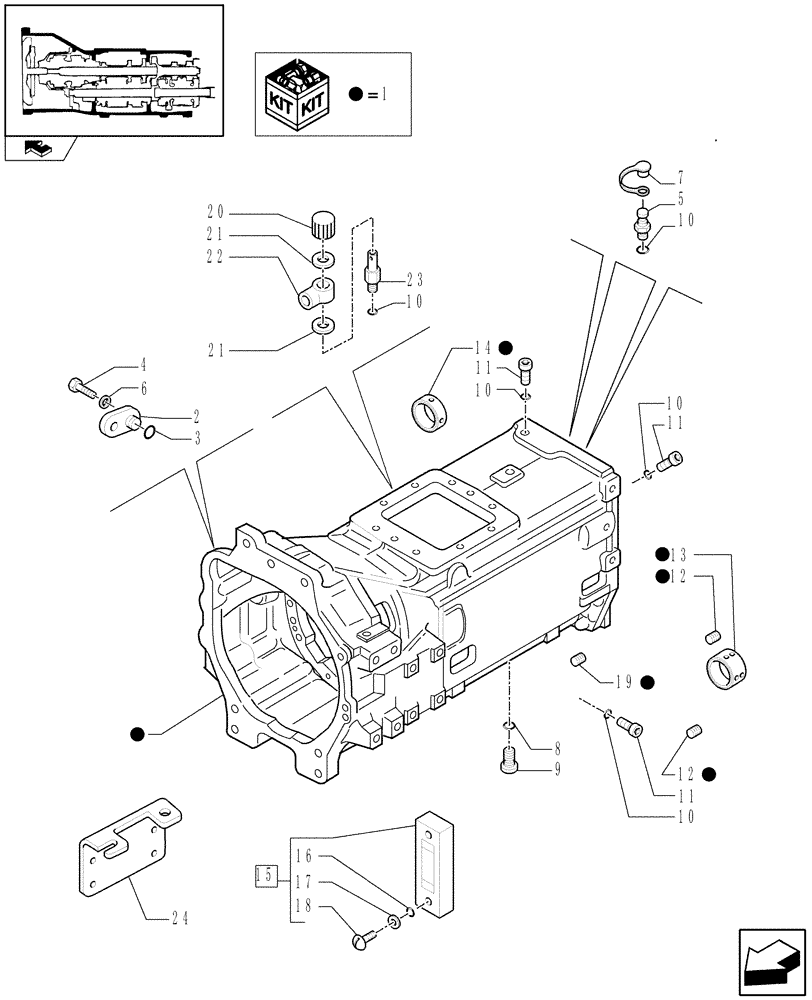

Запчасти Case IH PUMA 140 (1.21.0/01[01]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - CLUTCH BOX AND RELATED PARTS (VAR.330285) (03) - TRANSMISSION

1

84252680

HOUSING

1шт.

2

87307348

PLUG,18mm ID

1шт.

3

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

3

272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

5

5185423

COUPLING

4шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

7

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

8

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

9

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

10шт.

11

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

2шт.

13

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

90.020/90.050 x 100.050/100.065 x 52.5

1шт.

14

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

90.020/90.050 x 100.050/100.065 x 28

1шт.

15

87383494

LEVEL GAUGE

1шт.

Puma 125, Puma 140

1шт.

15

87696615

LEVEL GAUGE

1шт.

Puma 155

1шт.

16

47130060

O-RING

2шт.

17

87349969

RUBBER SEAL

2шт.

18

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

19

5153109

DOWEL,10mm OD x 15mm L

D=10 x 15

2шт.

20

10183217

NUT,Banjo, M12 x 1.5, 2-Way

1шт.

21

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

2шт.

22

5189334

END FITTING

1шт.

23

5189333

BANJO BOLT,M14 x 1.5, M12 x 1.5, 61mm L

1шт.

24

87652791

SUPPORT

1шт.
