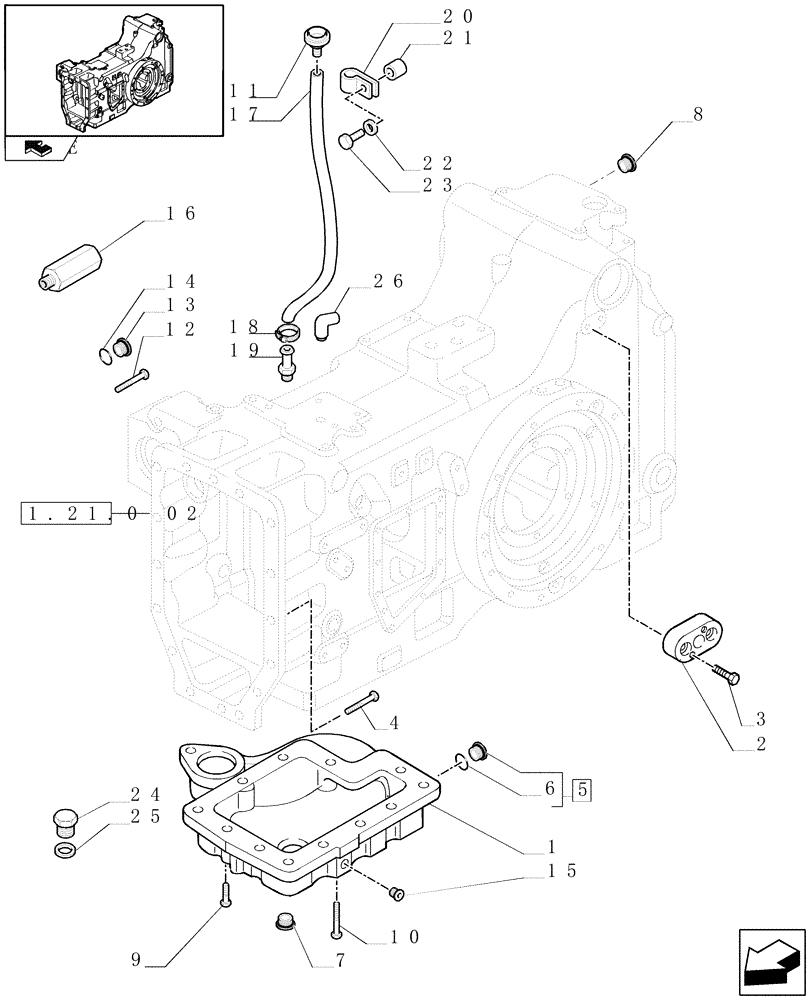

Запчасти Case IH PUMA 140 (1.21.0[03]) - TRANSMISSION 18X6 OR 19X6 - REAR AXLE HOUSING, COVER AND BREATHER (03) - TRANSMISSION

1

84181788

COVER

1шт.

2

47132374

SPACER

1шт.

3

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

15860131

SCREW,Hex, M14 x 1.5 x 50mm, Cl 10.9

4шт.

5

5185747

PLUG,1"13/16-12

1шт.

6

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

8

83957506

PLUG,3/4"

1шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

9шт.

10

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

3шт.

11

83925022

BREATHER,.375-18 NPT

1шт.

12

15840534

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

8шт.

12

15981134

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

2шт.

13

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

3шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

4шт.

15

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

16

87683202

PLUG,Hex, M16 x 1.5 x M8 x 1.25

1шт.

17

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

18

82000599

CLAMP,22mm - 26mm

1шт.

19

82894853

FITTING,69 D x 3/16"-1/8

1шт.

20

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

21

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

22

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

23

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

24

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

25

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

26

47134073

PIPE

1шт.

Cat.2 Flexible Links for EDC, VAR.331920-331970

1шт.
