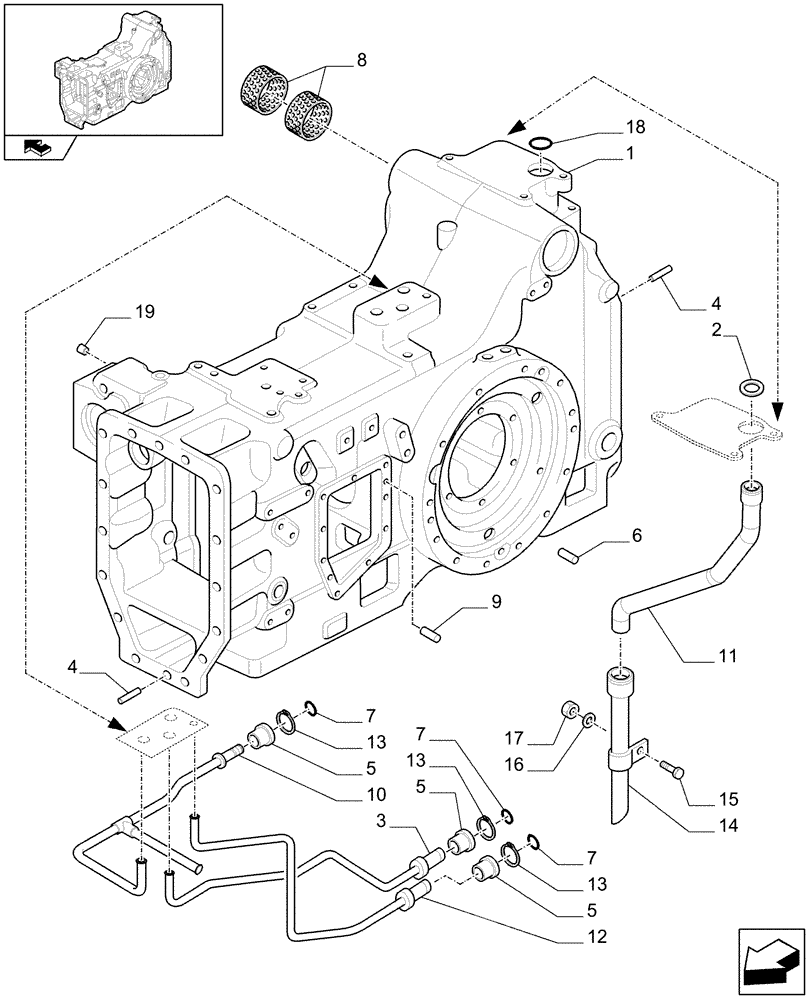

Запчасти Case IH PUMA 140 (1.21.0[02]) - TRANSMISSION 18X6 OR 19X6 - REAR AXLE HOUSING AND INNER PIPES (03) - TRANSMISSION

1

84248278

TRANSMISSION HOUSING

, Serial Range: -C6803

1шт.

1

84312084

TRANSMISSION HOUSING

, Start Serial: D6803

1шт.

1

84248279

TRANSMISSION HOUSING

, Serial Range: -C6803

1шт.

40 Km/H Economy with Auto Change, VAR.331291-332291

1шт.

50 Km/H with Auto Change, VAR.331247-332247

1шт.

1

84312159

HOUSING

, Start Serial: D6803

1шт.

40 Km/H Economy with Auto Change, VAR.331291-332291

1шт.

50 Km/H with Auto Change, VAR.331247-332247

1шт.

2

13398776

SNAP RING,M35, Int

1шт.

3

87386528

HYD TUBE,378, 72.5 mm L

PTO Clutch

1шт.

4

4985062

DOWEL,15mm OD x 25mm L

4шт.

5

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

3шт.

6

5110200

DOWEL,12mm OD x 25mm L

10шт.

7

14453181

O-RING,0.489" ID x 0.07" Width

3шт.

8

5180491

BUSHING,65.1mm ID x 70.03mm OD x 45mm L

4шт.

9

10839710

DOWEL,M10 x 15.00mm

2шт.

10

87386537

HYD TUBE,423, 112 mm L

Lubrification PTO

1шт.

11

87374620

HYD TUBE,413.7, 303.75 mm L

Control Valves Drain

1шт.

12

87386535

HYD TUBE,248, 131 mm L

Brake PTO

1шт.

13

300625

SNAP RING,M16, Ext

3шт.

14

87376006

HYD TUBE,295 mm L

1шт.

15

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

16

14198700

LOCKING PLATE,M8

1шт.

17

43362

NUT,M8 x 1.25, Cl 10

1шт.

18

272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

19

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.
