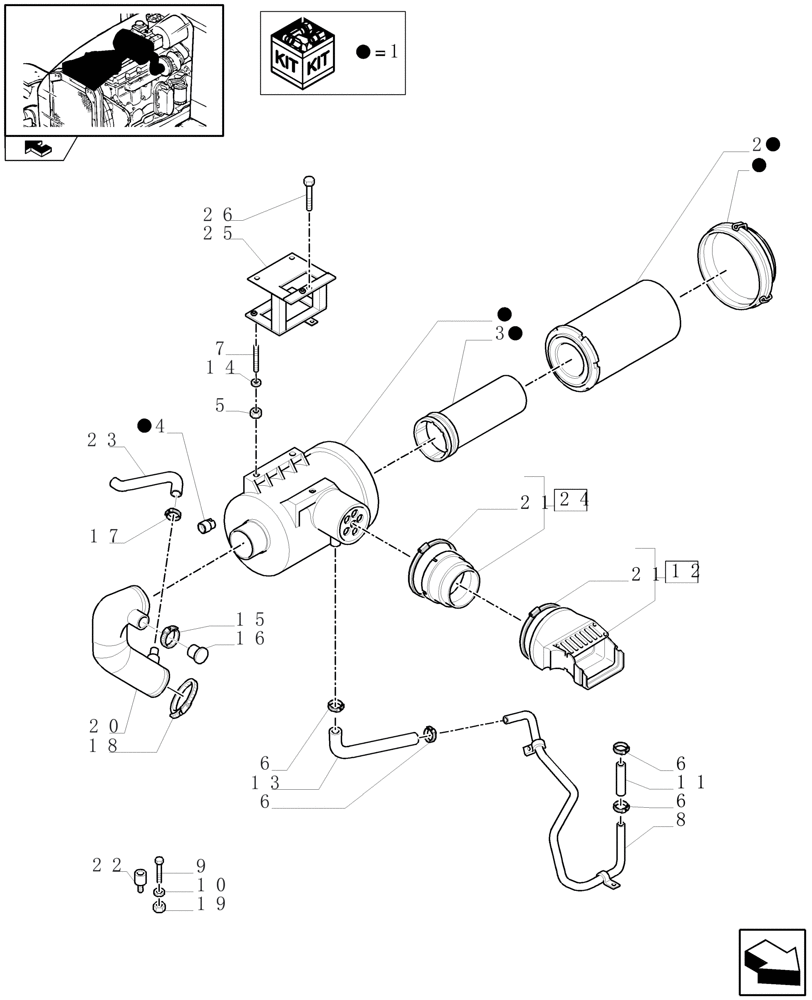

Запчасти Case IH PUMA 140 (1.19.1) - AIR FILTER WITH PRECLEANER AND PIPES (02) - ENGINE EQUIPMENT

1

87585981

AIR CLEANER

ASSY

1шт.

2

82028977

AIR FILTER

1шт.

3

82028151

AIR FILTER

1шт.

4

82029621

INDICATOR

1шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

6

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

7

81870144

STUD,M10 x 32

3шт.

8

87315687

TUBE

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

11

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

12

87518694

DUCT

1шт.

13

87396929

LARGE HOSE

HOSE,LARGE

1шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

15

13387570

HOSE CLAMP

34MM

1шт.

16

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

17

82039344

HOSE CLAMP,20mm - 32mm

20/32MM

2шт.

18

87313773

CLAMP,100mm - 120mm, Worm Gear

100 x 120 x 12

2шт.

19

15896211

NUT,M6, Cl 8

4шт.

20

84131841

CONDUIT

Incl. 15, 16

1шт.

21

82021427

CLAMP

1шт.

22

87344666

ISOLATOR

4шт.

23

87312773

FLEXIBLE HOSE,212.00 mm x 22.23 mm ID, 28.00 mm ID

1шт.

24

84148792

ADAPTER

1шт.

25

84252253

SUPPORT

1шт.

26

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.
