(1.17.0/ A) - INTERCOOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN

Запчасти Case IH PUMA 140 (1.17.0/ A) - INTERCOOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN (02) - ENGINE EQUIPMENT

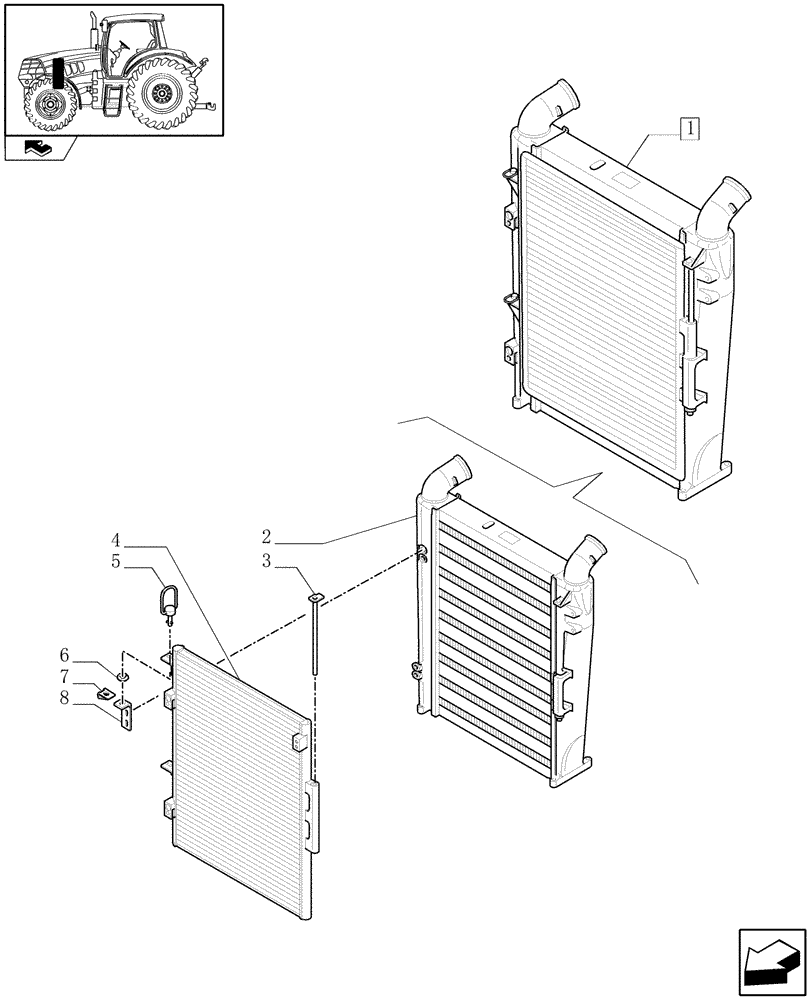

Схема запчастей Case IH PUMA 140 - (1.17.0/ A) - INTERCOOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN (02) - ENGINE EQUIPMENT
3
5
home
6
2
7
4
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84158367

INTERCOOLER

ASSY

1шт.

2

87739454

INTERCOOLER

Intercooler

1шт.

3

87658578

PIN

1шт.

4

84158364

CONDENSER

Air Conditioning Condenser

1шт.

5

87734728

STUD,5mm OD x 56mm L

2шт.

6

87734729

SNAP RING

2шт.

7

87734730

SPRING CLIP

2шт.

8

87741699

HOLDER

2шт.
