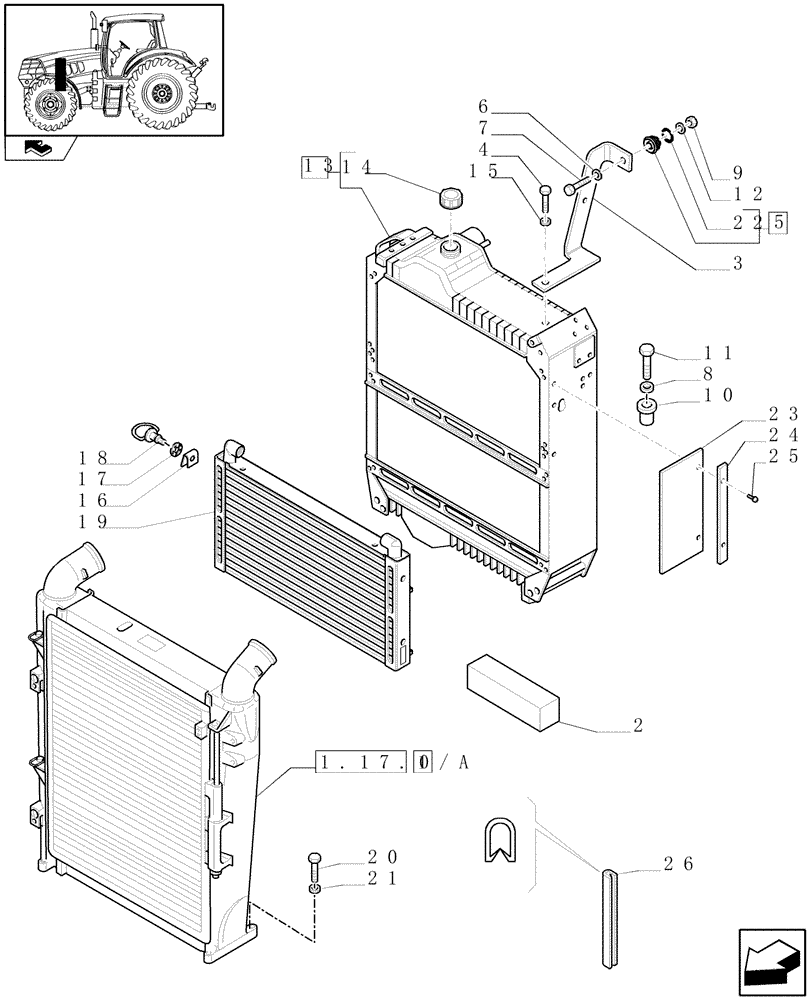

Запчасти Case IH PUMA 140 (1.17.0) - RADIATOR, COOLING SYSTEM RELATED PARTS (02) - ENGINE EQUIPMENT

1

84158367

INTERCOOLER

ASSY

1шт.

2

82030145

FOAM INSULATION

2шт.

3

84155940

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

87737094

RADIATOR

6 Row

1шт.

14

87306788

RADIATOR CAP

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

82004582

CLIP,Square, 25mm

1шт.

17

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

18

82005454

FASTENER

1шт.

19

84142636

OIL COOLER

1шт.

20

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

22

82033528

SNAP RING,55mm ID

1шт.

23

87726039

SEAL

2шт.

Puma 125

1шт.

24

87726040

PLATE

2шт.

Puma 125

1шт.

25

82894824

RIVET

ASSY

1шт.

Puma 125

1шт.

26

83964601

MOLDING,164mm L

1шт.
