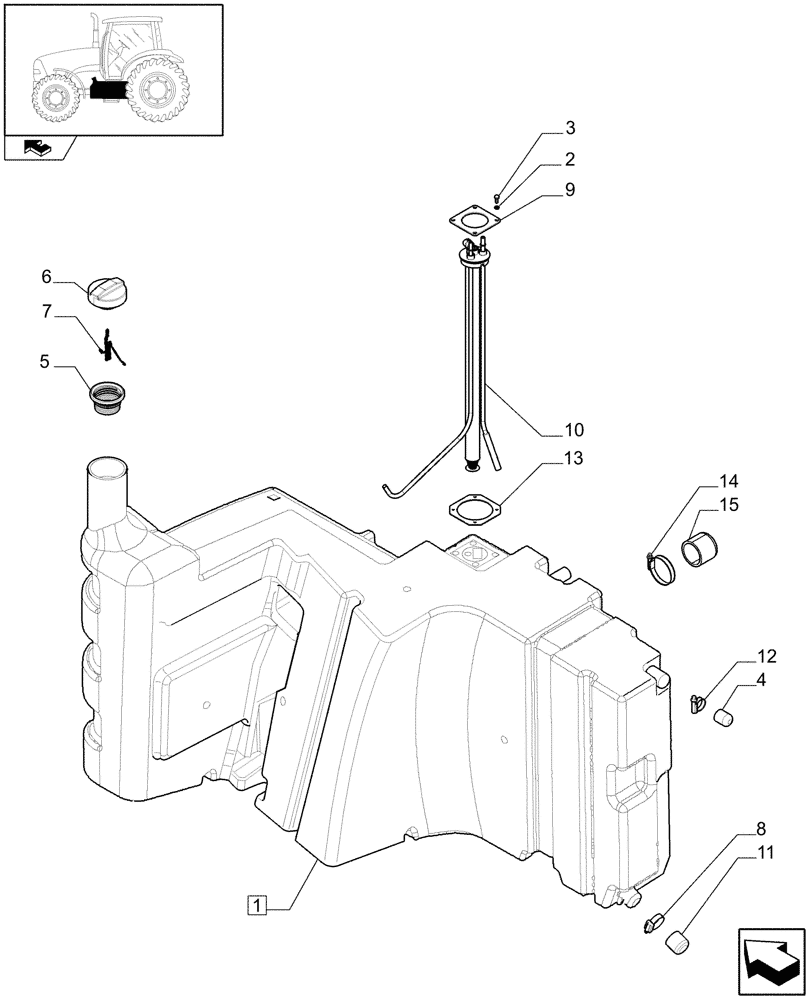

Запчасти Case IH PUMA 140 (1.14.0[01A]) - FUEL TANK - D6851 (02) - ENGINE EQUIPMENT

1

84180447

FUEL TANK

ASSY, Main, Incl.2 - 15

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

83952371

CAP,15mm ID X 25mm

1шт.

5

87554848

NECK FILLER

1шт.

6

82011472

LOCKABLE FUEL CAP

Locking fuel cap incl. key 82012211

1шт.

7

87490453

LINK CHAIN

1шт.

8

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

9

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

10

84174018

FUEL GAUGE

Float ASSY

1шт.

11

83998666

CAP

1шт.

12

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.

13

87341159

PLATE

1шт.

14

82036462

CLAMP,50mm - 70mm

1шт.

15

82005423

CAP,47.5mm ID X 45mm

1шт.
