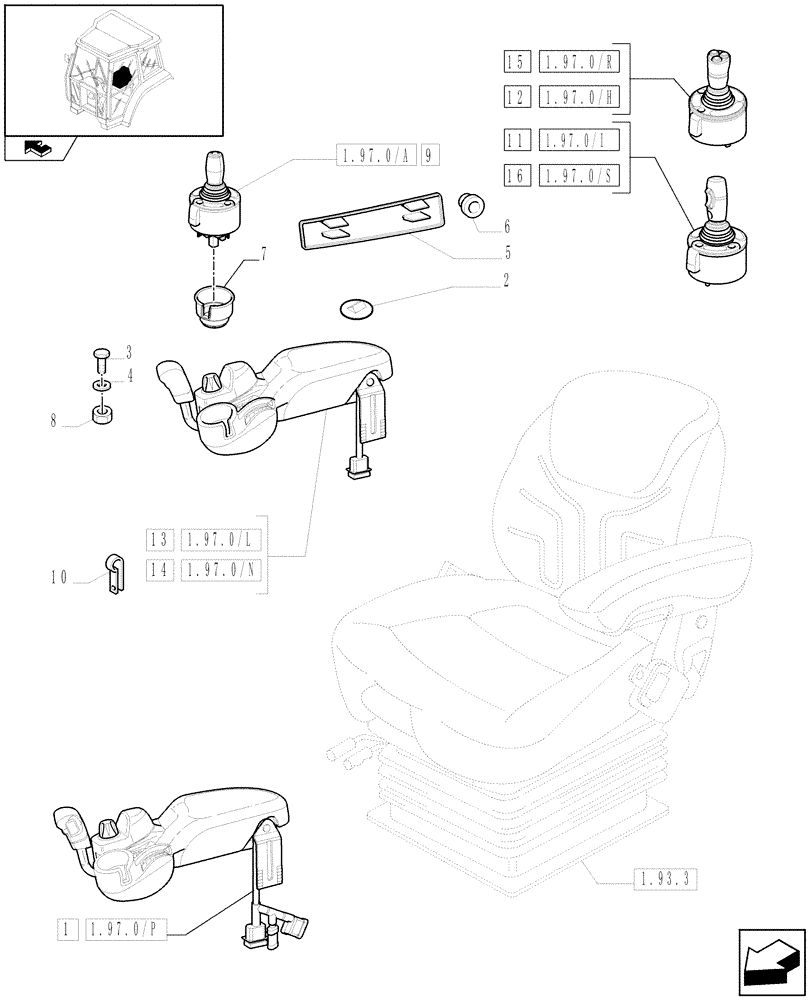

Запчасти Case IH PUMA 140 (1.97.0[01A]) - ELECTRONIC LIFT CONTROL AND EHR CONTROL - D6303 (10) - OPERATORS PLATFORM/CAB

1

87483892

ARMREST ASSY.

1шт.

2

47057509

FASTENER

2шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

4

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

5

87385341

BLANK-OFF PLUG,3.5mm Thk, Black

1шт.

6

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

7

87601778

HOLDER

1шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

9

87712552

JOYSTICK

ASSY, VAR.335821

1шт.

10

82033477

CLIP

1шт.

11

87491613

JOYSTICK

ASSY, VAR.333821, Serial Range: -C6587

1шт.

84261738R

REMAN-JOYSTICK

PUMA 140, PUMA 155, PUMA 115, PUMA 125 ALL SERIAL RANGE: -C6587 (1/07-11/09), Reman For New P/N 87491613

1шт.

84261738C

CORE-JOYSTICK

Return Number

1шт.

87491613C

CORE-JOYSTICK

Return Number, JOYSTICK

1шт.

12

87745880

JOYSTICK

ASSY, VAR.337782, Serial Range: -C6587

1шт.

13

87676400

ARMREST ASSY.

1шт.

With Radar, less HTS only, VAR.330021

1шт.

14

87676407

ARMREST ASSY.

1шт.

15

84261737

JOYSTICK

VAR.337782, Start Serial: D6587

1шт.

16

84261738

JOYSTICK

VAR.333821, Start Serial: D6587

1шт.

84261738R

REMAN-JOYSTICK

PUMA 115, PUMA 140, PUMA 155, PUMA 125 ALL START SERIAL: D6587 (1/07-11/09)

1шт.

84261738C

CORE-JOYSTICK

Return Number

1шт.
