(1.93.3/ D[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709)

Запчасти Case IH PUMA 140 (1.93.3/ D[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB

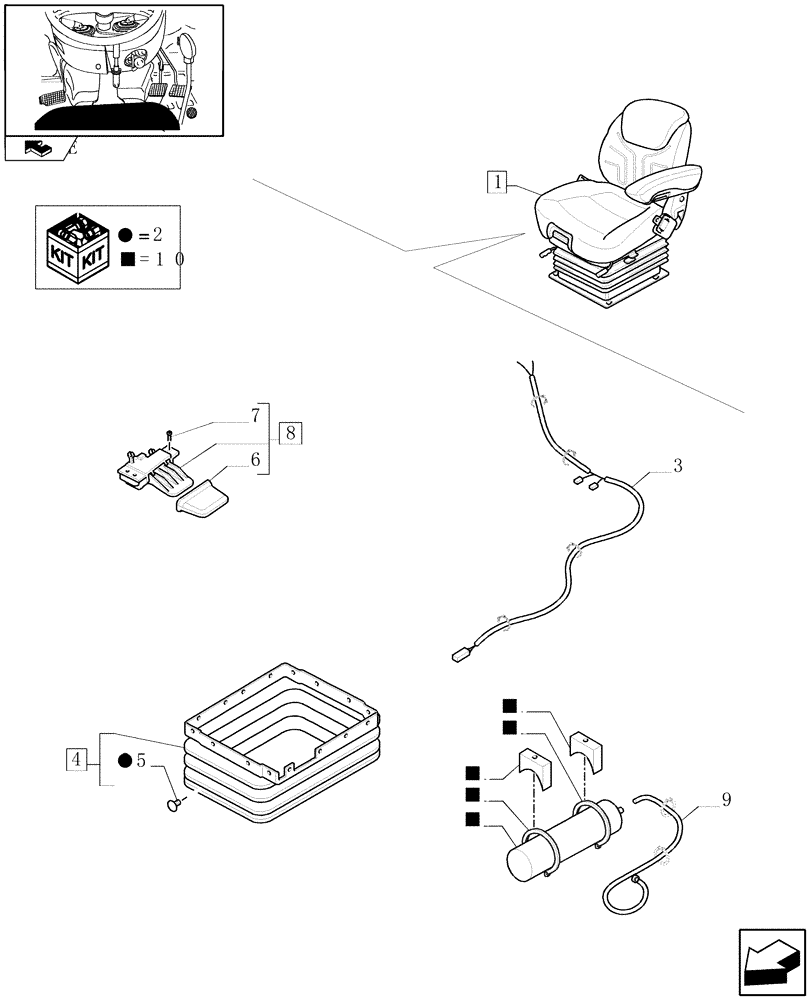

Схема запчастей Case IH PUMA 140 - (1.93.3/ D[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB
10
4
8
6
2
10
home
3
5
10
10
1
9
2
10
7
2
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87590512

SEAT

ASSY

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

84145499

KIT

1шт.

4

85827920

BELLOWS

1шт.

5

82035026

PLUG

1шт.

6

345106A1

HANDLE

1шт.

7

85819815

SCREW,M5 x 16mm

M5 x 16

3шт.

8

345107A1

LEVER

1шт.

9

84145496

HOSE KIT

1шт.

10

84171416

SERVICE KIT

1шт.
