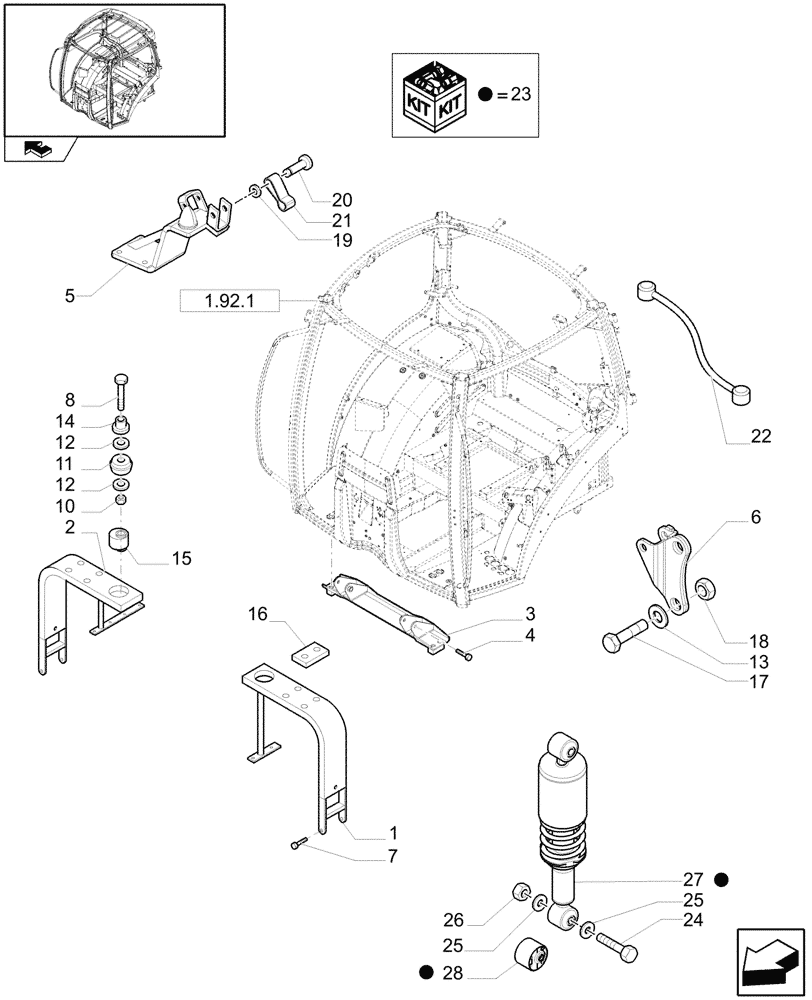

Запчасти Case IH PUMA 140 (1.92.6/01) - CABIN SUSPENSION - SUPPORTS (VAR.330658-331658) (10) - OPERATORS PLATFORM/CAB

1

87527276

SUPPORT

LH, Incl. 11

1шт.

2

87527278

SUPPORT

RH, Incl. 11

1шт.

3

87621039

SUPPORT

1шт.

4

11126521

BOLT,Hex, M20 x 140, 8.8

2шт.

5

87521135

SUPPORT

LH

1шт.

PUMA125, PUMA140, PUMA155

1шт.

5

87521139

SUPPORT

RH

1шт.

PUMA125, PUMA140, PUMA155

1шт.

5

87521110

SUPPORT

LH

1шт.

PUMA115, PUMA125, PUMA140

1шт.

5

87521122

SUPPORT

RH

1шт.

PUMA115, PUMA125, PUMA140

1шт.

6

87319758

SUPPORT

LH

1шт.

PUMA125, PUMA140, PUMA155

1шт.

6

87319870

SUPPORT

1шт.

6

87520938

SUPPORT

LH

1шт.

PUMA115, PUMA125, PUMA140

1шт.

6

87520940

SUPPORT

RH

1шт.

PUMA125, PUMA140, PUMA155

1шт.

PUMA115, PUMA125, PUMA140

1шт.

7

11408324

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

8шт.

8

87335549

BOLT,Hex, M20 x 150mm, Cl 8.8

4шт.

9

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

10

87335547

SPECIAL NUT

2шт.

11

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

12

14497101

WASHER,M20 x 37 x 3

4шт.

12

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

4шт.

13

14497101

WASHER,M20 x 37 x 3

2шт.

14

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

15

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

16

87597203

SPECIAL NUT

2шт.

17

11125721

BOLT,Hex, M20 x 100, 8.8

1шт.

18

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

M20

2шт.

19

11066871

CIRCLIP,M20

4шт.

20

87543582

PIN,20mm OD x 104mm L

4шт.

21

87357896

STRAP,165mm L

2шт.

22

87591850

TIE-ROD,2 x 38.9mm ID

1шт.

23

84183933

SERVICE KIT

ASSY

1шт.

24

11117021

BOLT,Hex, M14 x 90, 8.8

2шт.

25

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

6шт.

26

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

27

84183931

SHOCK ABSORBER

2шт.

28

84183930

ISOLATOR

2шт.
