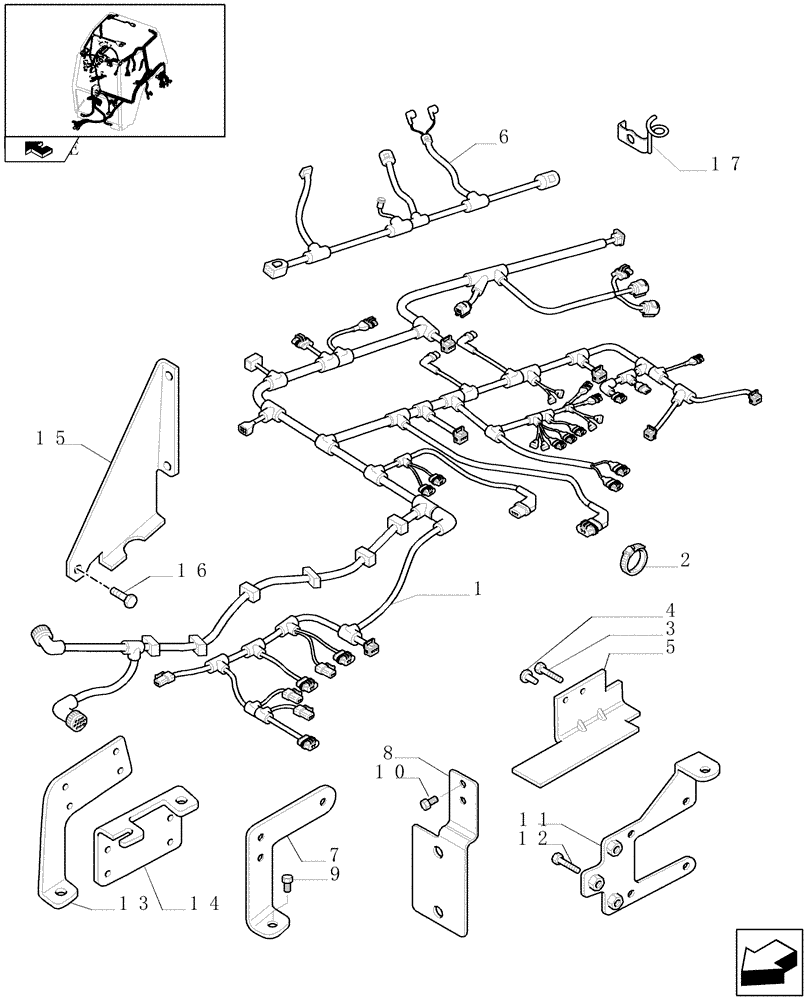

Запчасти Case IH PUMA 140 (1.91.4[05]) - CABLE EXTENSION (10) - OPERATORS PLATFORM/CAB

1

87707404

WIRE HARNESS

SPS

1шт.

1

87707405

WIRE HARNESS

FPS

1шт.

1

87655193

WIRE HARNESS

SPS W/EHRS ISO BUS

1шт.

With 113l/min CCLS Pump for SPS & EDC for 30 & 40 EHRCV'S only, VAR.332836

1шт.

1

87655195

WIRE HARNESS

1шт.

With 113l/min CCLS Pump for FPS & EDC With Slip for EHRCV'S only, VAR.334836

1шт.

2

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

3

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

4

14494601

RIVET

2шт.

5

82033141

SHIELD

W 16 x 16 Trans.

1шт.

6

87540007

WIRE HARNESS

Hydraulic Pump

1шт.

7

87620213

BRACKET

1шт.

8

87624046

BRACKET

1шт.

9

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

10

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

11

87598402

BRACKET

1шт.

With 113l/min CCLS Pump for FPS & EDC With Slip for EHRCV'S only, VAR.334836

1шт.

With 113l/min CCLS Pump for SPS & EDC for 30 & 40 EHRCV'S only, VAR.332836

1шт.

W/Equip. 336761-337761

1шт.

12

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

With 113l/min CCLS Pump for FPS & EDC With Slip for EHRCV'S only, VAR.334836

1шт.

With 113l/min CCLS Pump for SPS & EDC for 30 & 40 EHRCV'S only, VAR.332836

1шт.

W/Equip. 336761-337761

1шт.

13

87671389

SUPPORT

, Start Serial: D5833

1шт.

14

87652791

SUPPORT

, Start Serial: D5833

1шт.

15

87652790

SUPPORT

, Start Serial: D5833

1шт.

W/Var.330862-331862

1шт.

16

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

, Start Serial: D5833

1шт.

W/Var.330862-331862

1шт.

17

87574198

GUIDE

1шт.

Cabin Suspension with 16x16 Transmission, VAR.330658-331658

1шт.
