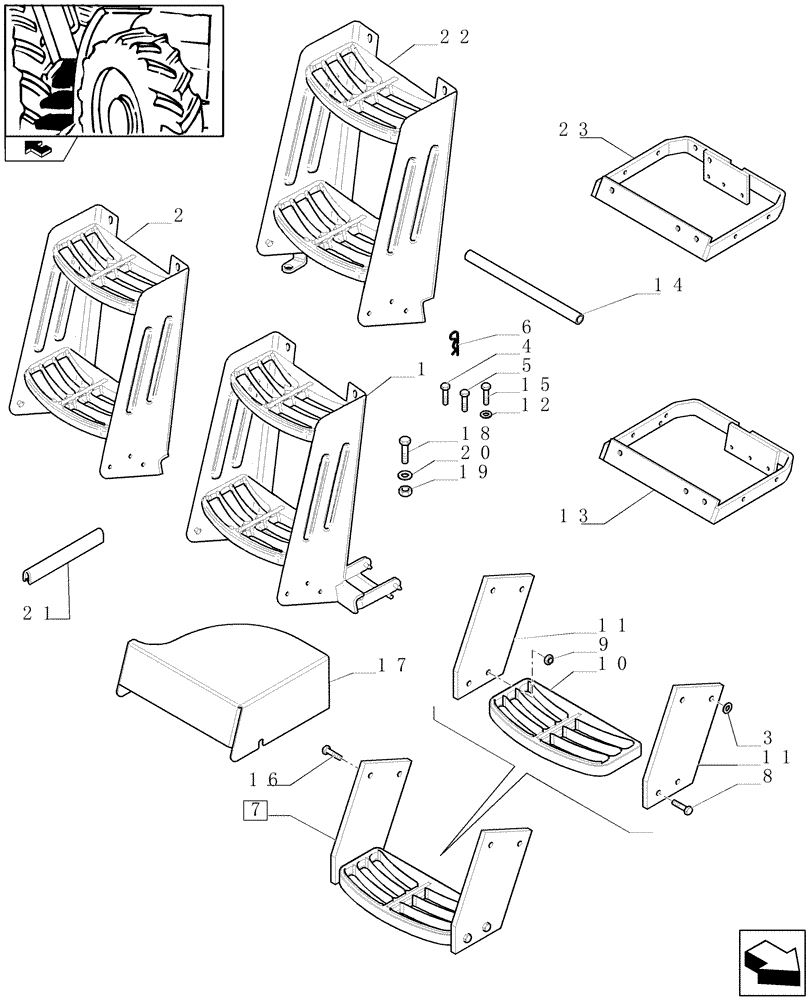

Запчасти Case IH PUMA 140 (1.90.2) - FOOT STEP (10) - OPERATORS PLATFORM/CAB

1

87603543

FOOT BOARD

RH, Serial Range: -C6297

1шт.

1

87483117

FOOT BOARD

RH, Start Serial: D6297

1шт.

2

87604981

FOOT BOARD

LH, Serial Range: -C6297

1шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

6

81865839

COTTER PIN

4шт.

7

87565419

FOOT BOARD

Incl. 3, 8, 9, 10, 11

2шт.

8

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

8шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

10

87371925

STEP

Rubber Step

2шт.

11

87565408

SUPPORT

4шт.

12

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

13

87566677

FOOT BOARD

, Serial Range: -C6297

1шт.

14

82037481

BAR

, Serial Range: -C5939

1шт.

14

87756126

BAR

, Start Serial: D5939

1шт.

15

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

16

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

8шт.

17

87595990

COVER

1шт.

18

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

20

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

4шт.

21

87710638

MOLDING

154-156MM

1шт.

21

87710627

MOLDING

60-65MM

1шт.

22

87483111

FOOT BOARD

LH, Start Serial: D6297

1шт.

23

87483102

FOOT BOARD

, Start Serial: D6297

1шт.
