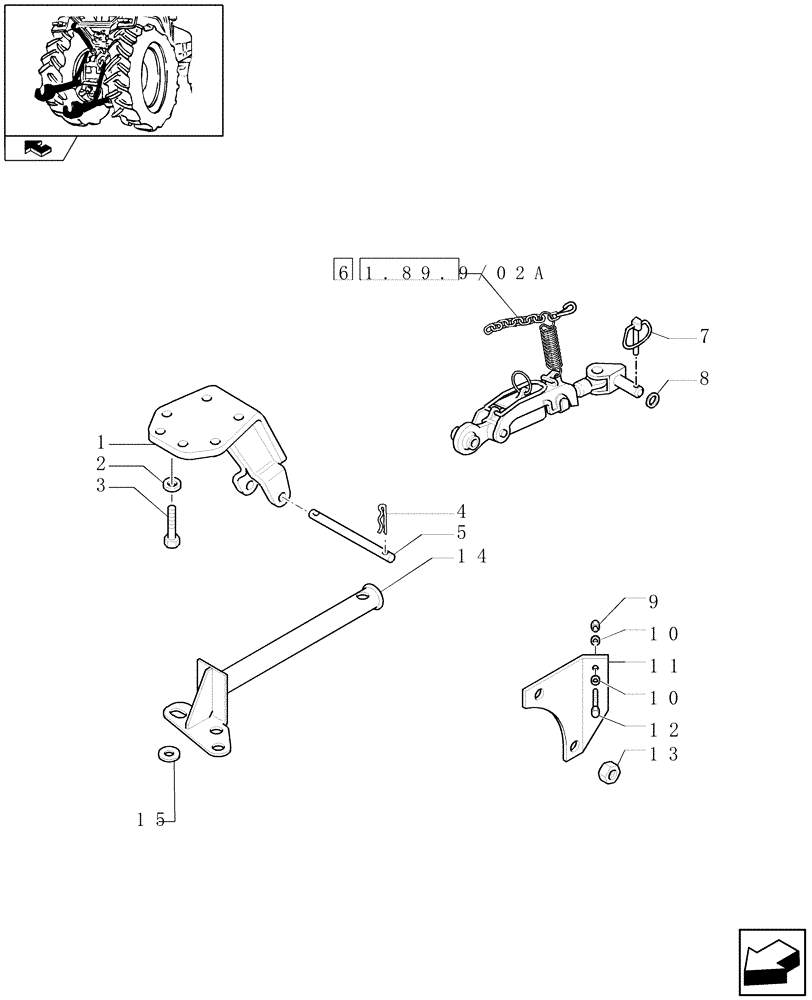

Запчасти Case IH PUMA 140 (1.89.9/02) - AUTOMATIC STABILIZERS (VAR.330949) (09) - IMPLEMENT LIFT

1

5154775

SUPPORT

PUMA115 - PUMA125 - PUMA140

2шт.

1

5190471

SUPPORT

LH, PUMA155

1шт.

1

5190497

SUPPORT

RH, PUMA155

1шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

4

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

4шт.

5

5125861

PIN,19mm OD x 105mm L

2шт.

6

87391930

STABILIZER

ASSY

2шт.

7

47125579

LINCH PIN,11.5mm OD

ROLL PIN

2шт.

8

562106

WASHER,25.50mm ID x 45.00mm OD

D=28.5x45x4

2шт.

9

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8x17

4шт.

11

87331651

BRACKET

RH

1шт.

11

87325954

BRACKET

LH

1шт.

12

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8x35

2шт.

13

81815739

WHEEL NUT,1/2"-20, 0.65" High, ZND

2шт.

14

87709207

SUPPORT

LH

1шт.

14

87709208

SUPPORT

RH

1шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
