(1.89.5/05) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR (GERMANY) (VAR.330955)

Запчасти Case IH PUMA 140 (1.89.5/05) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR (GERMANY) (VAR.330955) (09) - IMPLEMENT LIFT

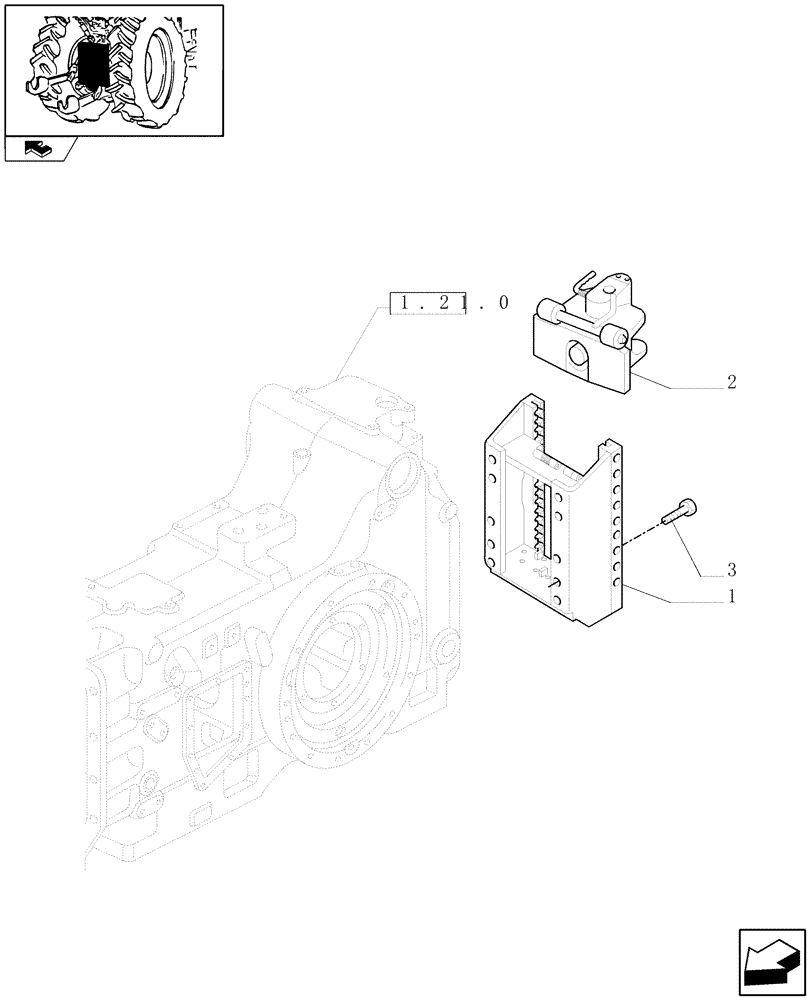

Схема запчастей Case IH PUMA 140 - (1.89.5/05) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING LESS SWINGING DRAWBAR (GERMANY) (VAR.330955) (09) - IMPLEMENT LIFT
3
2
1
home
1.21.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87470455

HITCH BRACKET

1шт.

2

82029387

TOW HOOK

TOW HOOK

1шт.

3

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

Выбрано товаров: 3
