Запчасти Case IH PUMA 140 (0.14.0[01]) - INJECTION PUMP (01) - ENGINE

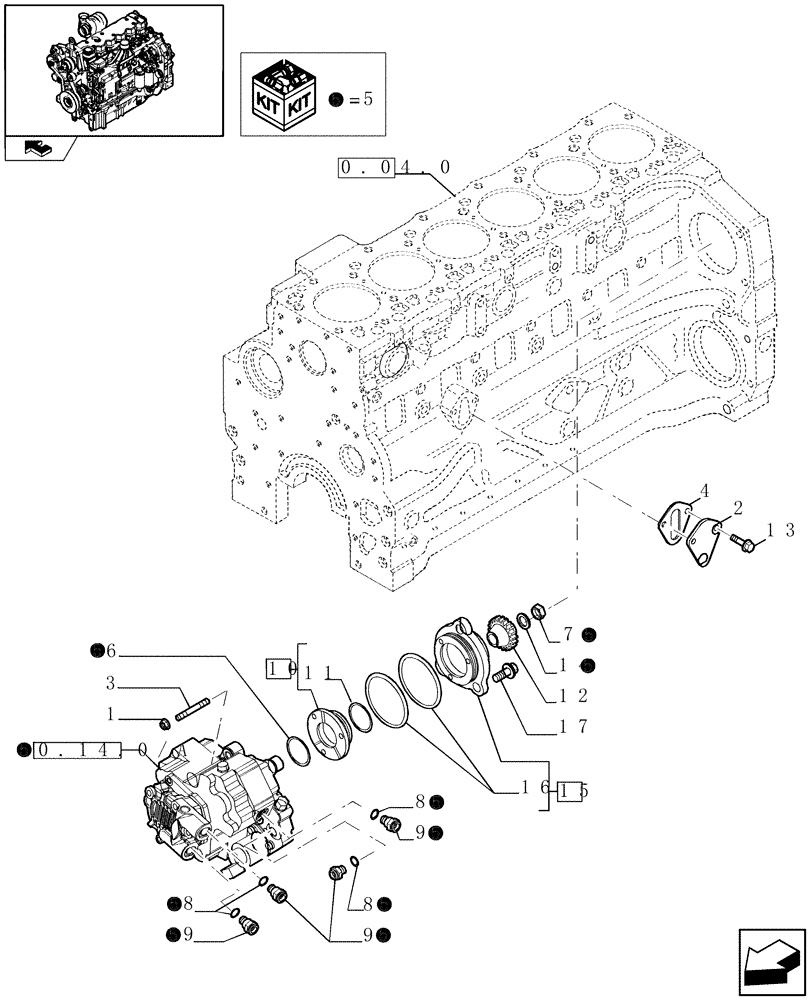

Схема запчастей Case IH PUMA 140 - (0.14.0[01]) - INJECTION PUMP (01) - ENGINE
5
0.04.0
15
4
11
7
5
9
8
13
5
8
1
5
5
8
5
14
5
6
12
17
3
10
home
0.14.0/a
5
9
9
5
2
5
5
16
5

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

4892831

STUD

M8X1.25X50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

- ASSY

1шт.

See PL 0.14.0/A

1шт.

84385110R

REMAN-INJECTION PUMP

PUMA 115, PUMA 125, PUMA 140, PUMA 155, All TRACTOR (1/07-11/09), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

*

Puma 125, Use w/ Eng. P/N 87542026(unboosted) Tier 3 Or 87312076(boosted) Tier 3

1шт.

*

Puma 140, Use w/ Eng. P/N 87542024(unboosted) Tier 3 Or 87312077(boosted) Tier 3

1шт.

*

Puma 155, Use w/ Eng. P/N 87542022(unboosted) Tier 3 Or 87312078(boosted) Tier 3

1шт.

*

N.A. Only

1шт.

5

4898921R

REMAN-INJECTION PUMP

Puma 115, Use w/ Eng. P/N 87542028(unboosted) Tier 3 Or 87516256(boosted) Tier 3

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2830564

SPACER

- ASSY

1шт.

11

17290581

O-RING,72.62mm ID x 2.34mm Width

2.34X72.62

1шт.

12

4896138

DRIVEN GEAR,27T

1шт.

13

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

14

4890635

SPRING WASHER

1шт.

15

2830598

BEARING COVER

- ASSY

1шт.

16

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

17

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

Выбрано товаров: 26
