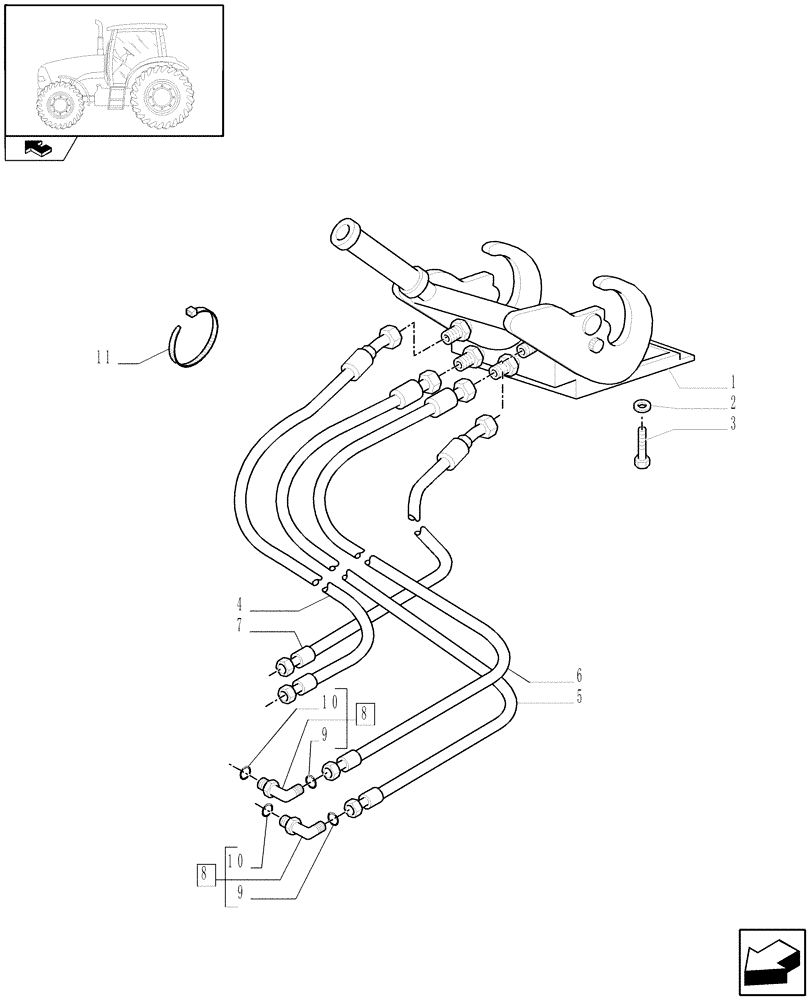

Запчасти Case IH PUMA 140 (1.82.7/12) - EUROPEAN LOADER READY WITH 2 ELEMENTS MID MOUNT VALVES - FAST-FITTING CONNECTION AND PIPES (VAR.332821-334821) (07) - HYDRAULIC SYSTEM

1

87733579

COUPLING

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

87680961

HOSE

Yellow, 975MM, Lower

1шт.

5

87680963

HOSE

Green, 1060MM, Raise

1шт.

6

87680964

HOSE

Red, 1105MM, Crowd

1шт.

7

87680965

HOSE

Blue, 995MM, Tip

1шт.

8

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

Incl. 9, 10

2шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

12.42 x 1.78

2шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

11

81844383

CABLE TIE

CABLE STRAP

1шт.
