Запчасти Case IH PUMA 140 (1.82.7/08[01]) - 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C6690 (VAR.330862-331862) (07) - HYDRAULIC SYSTEM

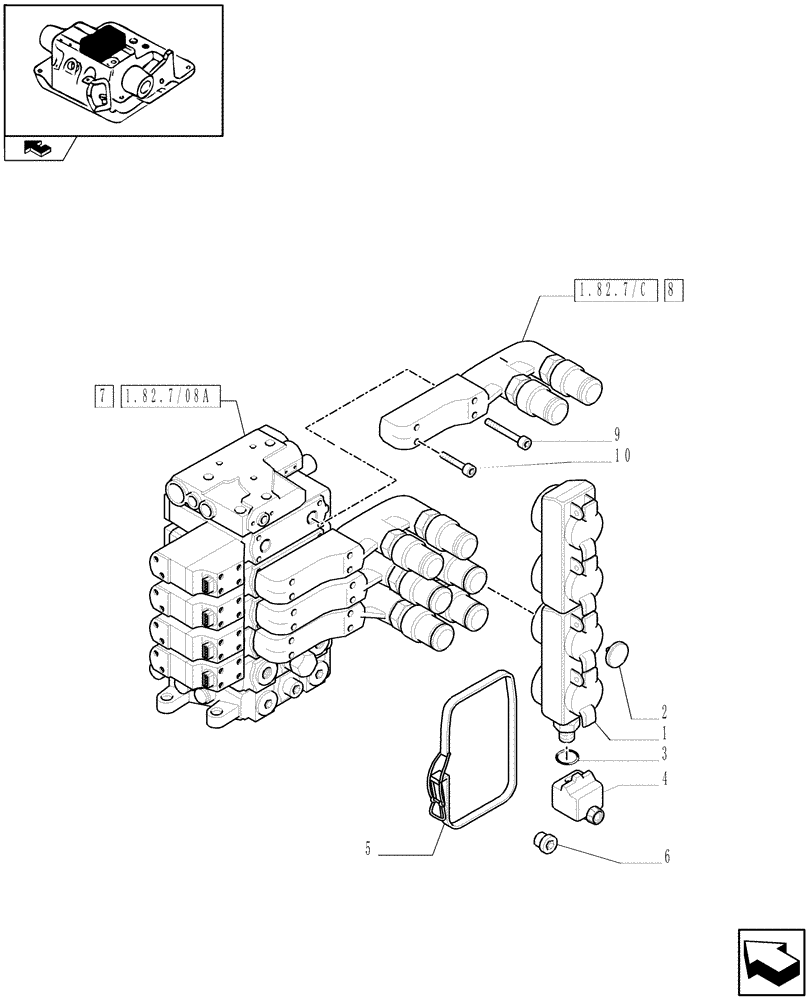

Схема запчастей Case IH PUMA 140 - (1.82.7/08[01]) - 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C6690 (VAR.330862-331862) (07) - HYDRAULIC SYSTEM
2
9
a
6
5
home
1.82.7/c
4
8
10
1
1.82.7/08
3
7

Артикул

Название

Примечание

Количество

1

82031982

DUST CAP

Incl. 2

2шт.

2

82029895

DISC,20mm D, Black

Black

8шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

82031972

RESERVOIR, HYDRAULIC

100MM Wide, Serial Range: -C5736

2шт.

4

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

4

84161329

BOTTLE

Assy, Oil Collection System, Start Serial: D6264

2шт.

5

82031973

SPRING CLIP

1шт.

6

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

7

87546172

CONTROL VALVE

1шт.

8

87381965

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

Выбрано товаров: 12
