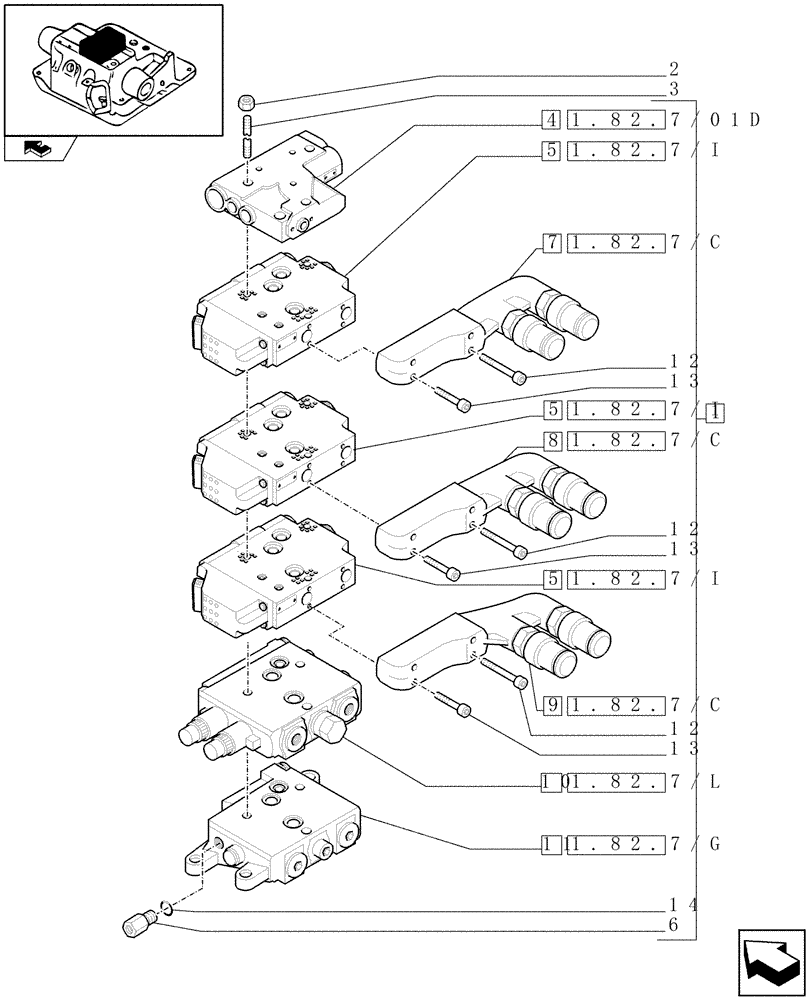

Запчасти Case IH PUMA 140 (1.82.7/07B) - 3 CCLS (EDC) ELECTRONIC CONTROL VALVES (EHS1) AND ASSOCIATED PARTS (VAR.330856) (07) - HYDRAULIC SYSTEM

1

84266154

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47131731

TIE-ROD,235mm L

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

3шт.

84230181R

REMAN-HYD VALVE

PUMA 115, PUMA 125, PUMA 140, PUMA 155 all (1/07-11/09)

3шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl.14

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

84175671R

REMAN-HYD VALVE

PUMA 115, PUMA 125, PUMA 140, PUMA 155 all (1/07-11/09)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

87730706R

REMAN-HYD VALVE

PUMA 115, PUMA 125, PUMA 140, PUMA 155 ALL (1/07-11/09)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
