(1.82.7/06[01]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - C6690 (VAR.330853)

Запчасти Case IH PUMA 140 (1.82.7/06[01]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - C6690 (VAR.330853) (07) - HYDRAULIC SYSTEM

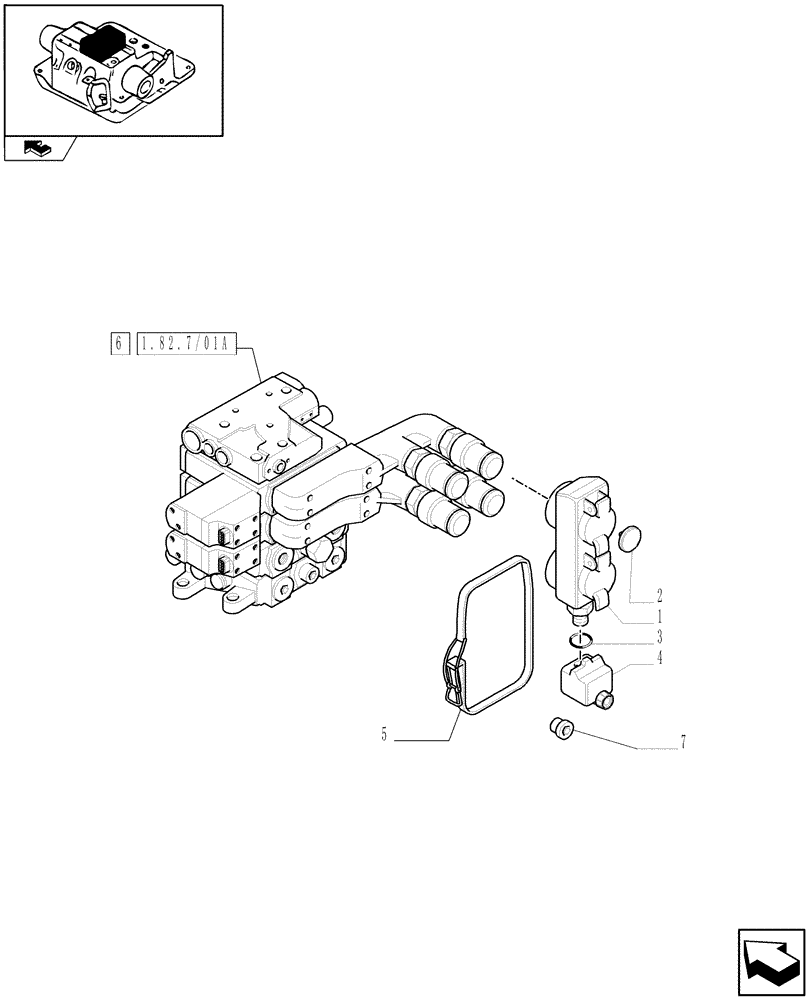

Схема запчастей Case IH PUMA 140 - (1.82.7/06[01]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - C6690 (VAR.330853) (07) - HYDRAULIC SYSTEM
home
1.82.7/01a
3
6
7
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87733574

DUST CAP

Incl. 2

2шт.

2

82029895

DISC,20mm D, Black

Black

4шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

Black

2шт.

4

82031972

RESERVOIR, HYDRAULIC

, Serial Range: -C5736

2шт.

4

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

4

84161329

BOTTLE

, Start Serial: D6264

2шт.

5

82031973

SPRING CLIP

1шт.

6

87546171

CONTROL VALVE

1шт.

7

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

Выбрано товаров: 9
