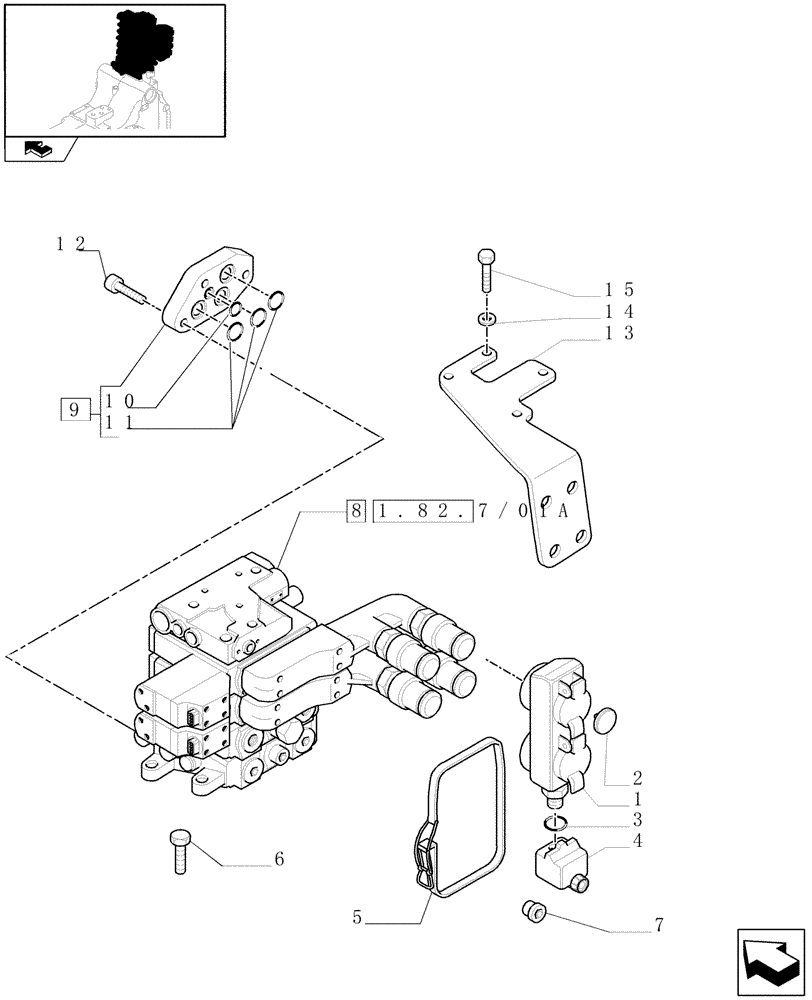

Запчасти Case IH PUMA 140 (1.82.7/01) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC (07) - HYDRAULIC SYSTEM

1

87733574

DUST CAP

Incl. 2

2шт.

2

82029895

DISC,20mm D, Black

Black

2шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

82031972

RESERVOIR, HYDRAULIC

1шт.

5

82031973

SPRING CLIP

1шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

8

87546171

CONTROL VALVE

1шт.

9

5199101

COVER

1шт.

10

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

11

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

12

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

13

87499713

BRACKET

1шт.

14

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
