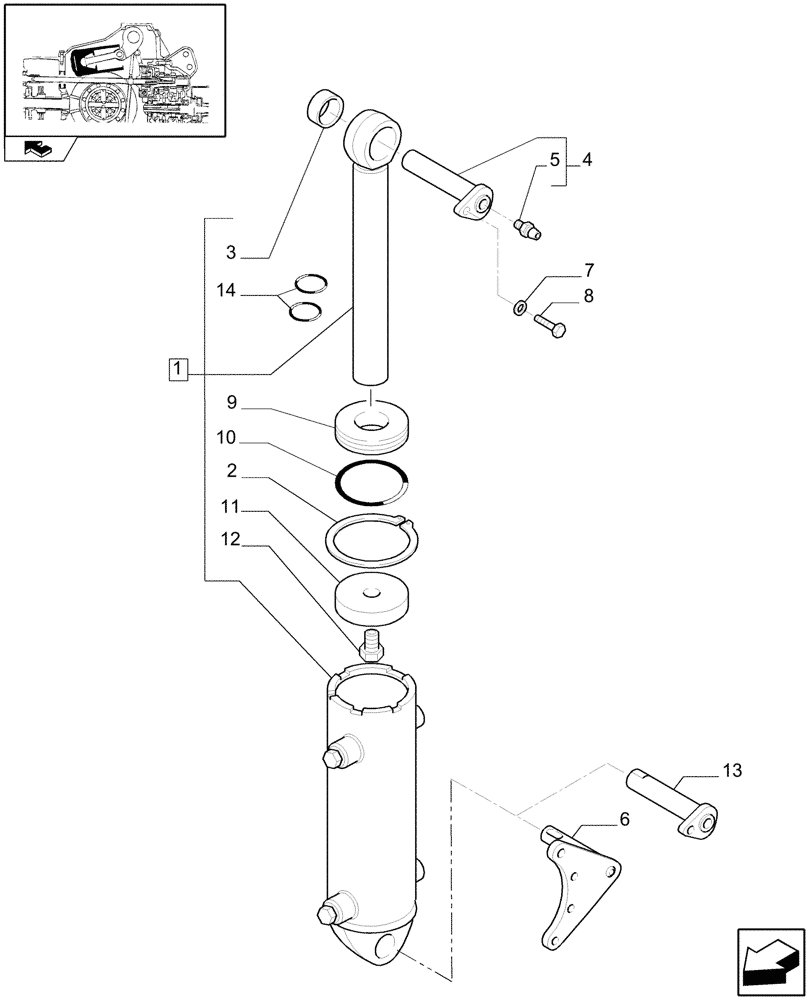

Запчасти Case IH PUMA 140 (1.82.6/01) - EDC WITH TWO EXTERNAL CYLINDERS - CYLINDERS (DIAM.100MM.) (VAR.332909-333909) (07) - HYDRAULIC SYSTEM

1

87380800

LIFT CYLINDER

1шт.

2

5198582

CIRCLIP

1шт.

3

5198652

BUSHING

1шт.

4

47133779

PIN

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

6

47132137

PIN

LH

1шт.

PUMA115, PUMA125, PUMA140

1шт.

6

47132135

PIN

RH

1шт.

PUMA115, PUMA125, PUMA140

1шт.

7

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.

8

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

9

87385637

CYLINDER HEAD

1шт.

10

5198583

SNAP RING

1шт.

11

87385636

PISTON

1шт.

12

87385633

BOLT

1шт.

13

47130245

PIN,34.7mm OD x 224mm L

2шт.

PUMA155

1шт.

14

87385622

SEAL KIT

1шт.
