Запчасти Case IH PUMA 140 (1.82.1[02]) - LIFTER LINES (07) - HYDRAULIC SYSTEM

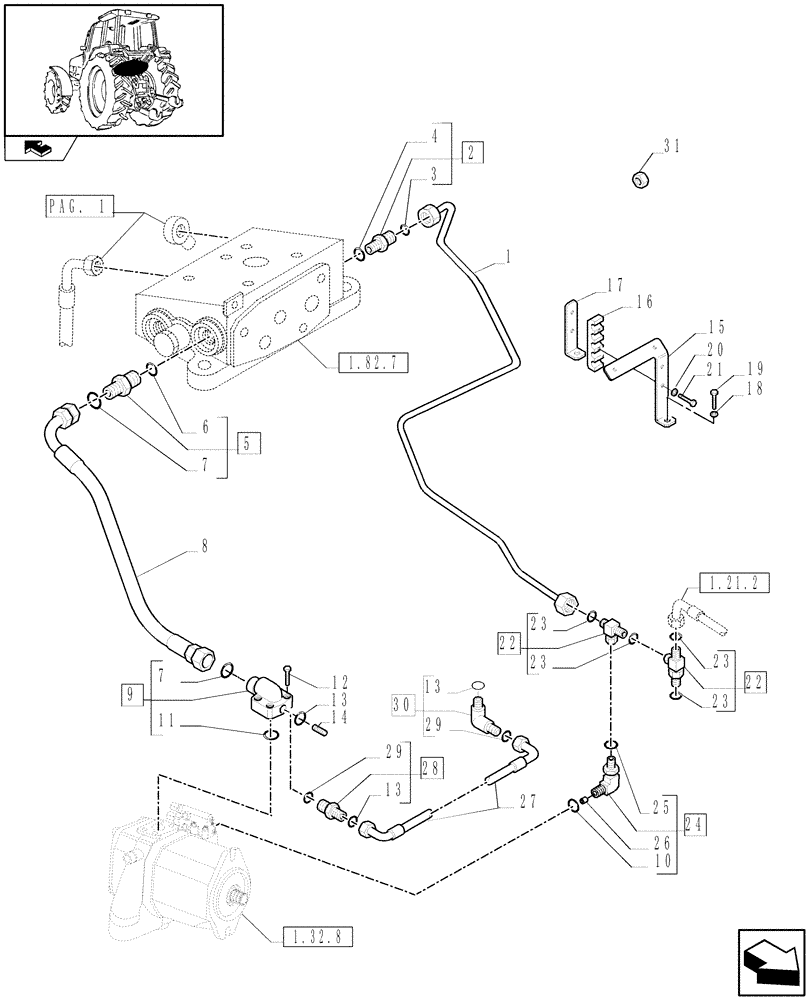

Схема запчастей Case IH PUMA 140 - (1.82.1[02]) - LIFTER LINES (07) - HYDRAULIC SYSTEM
17
29
18
4
16
27
19
13
7
7
23
6
1.21.2
10
1.32.8
1.82.7
26
20
31
3
23
2
1
23
22
5
13
9
30
22
23
home
pag. 1
15
12
11
14
29
25
21
28
8
24
13

Артикул

Название

Примечание

Количество

1

87519149

PIPE

, Serial Range: -C5833

1шт.

1

87660996

PIPE

, Start Serial: D5833

1шт.

2

5185045

HYD CONNECTOR

1шт.

3

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

5

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1шт.

6

14438185

O-RING,24mm ID x 3mm

1шт.

7

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

8

87304916

HOSE,16mm ID x 640mm L, SAE 100R16

1шт.

9

47130523

FLANGE

1шт.

10

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

11

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

12

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

14

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

15

87630862

SUPPORT

1шт.

16

87519179

CLAMP BRACKET

, Serial Range: -C5876

1шт.

16

87723144

BRACKET

, Start Serial: D5876

1шт.

17

87519178

SUPPORT

, Serial Range: -C5833

1шт.

18

12638624

WASHER,10.5mm ID x 18mm OD x 2mm Thk

1шт.

19

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

20

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

21

10902721

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

, Serial Range: -C5876

2шт.

21

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

, Start Serial: D5876

2шт.

22

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

2шт.

23

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

24

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

25

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

26

47126655

FILTER STRAINER

1шт.

27

47130532

FLEXIBLE HOSE

, Serial Range: -C6017

2шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

27

84142634

FLEXIBLE HOSE

, Start Serial: D6017

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

28

5196844

HYD CONNECTOR

, Serial Range: -C5918

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

29

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

30

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

1шт.

With EHR only, VAR.330853, 330856, 330862, 331862 and Base Equipment.

1шт.

31

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5876

2шт.

Выбрано товаров: 40
