(1.81.9/08) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926)

Запчасти Case IH PUMA 140 (1.81.9/08) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM

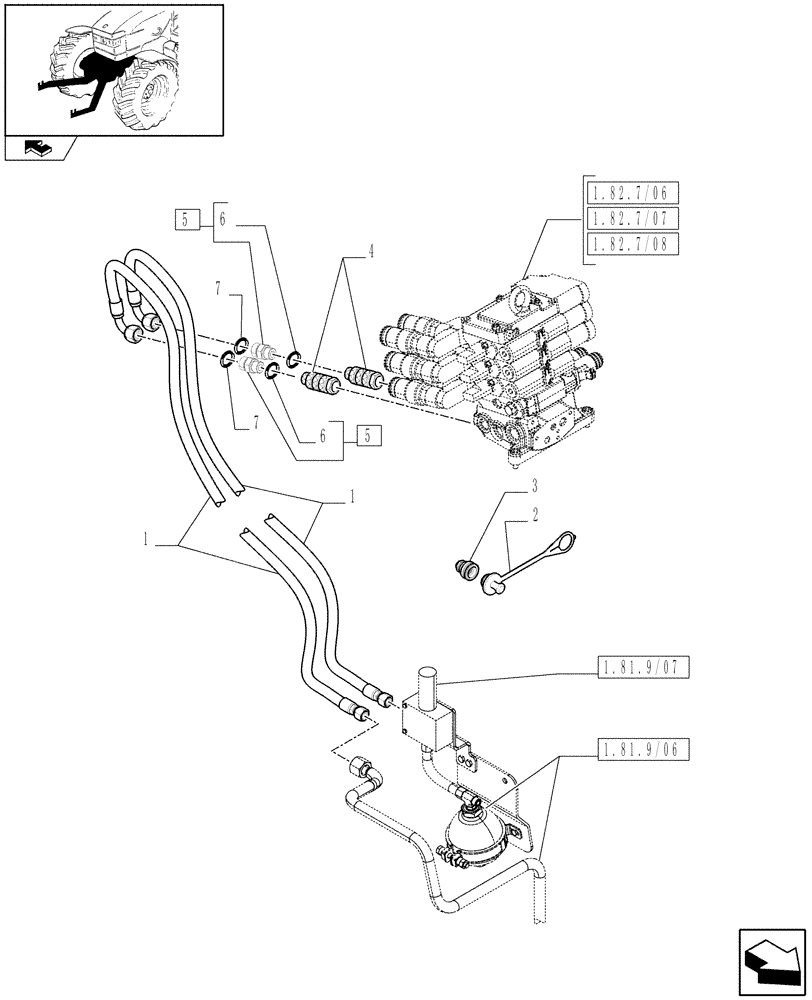

Схема запчастей Case IH PUMA 140 - (1.81.9/08) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM
3
home
4
7
1
5
1
7
5
2
6
1.81.9/06
1.82.7/06
1.82.7/07
1.82.7/08
1.81.9/07
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87667284

FLEXIBLE HOSE

3600MM

2шт.

2

5179576

PLUG,24mm, Green

Green

2шт.

3

47127559

COUPLING, QUICK, FEM

2шт.

4

83972881

COUPLING

2шт.

5

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

2шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

7

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

Выбрано товаров: 7
