Запчасти Case IH PUMA 140 (1.81.9/05[02]) - 4 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330172) (07) - HYDRAULIC SYSTEM

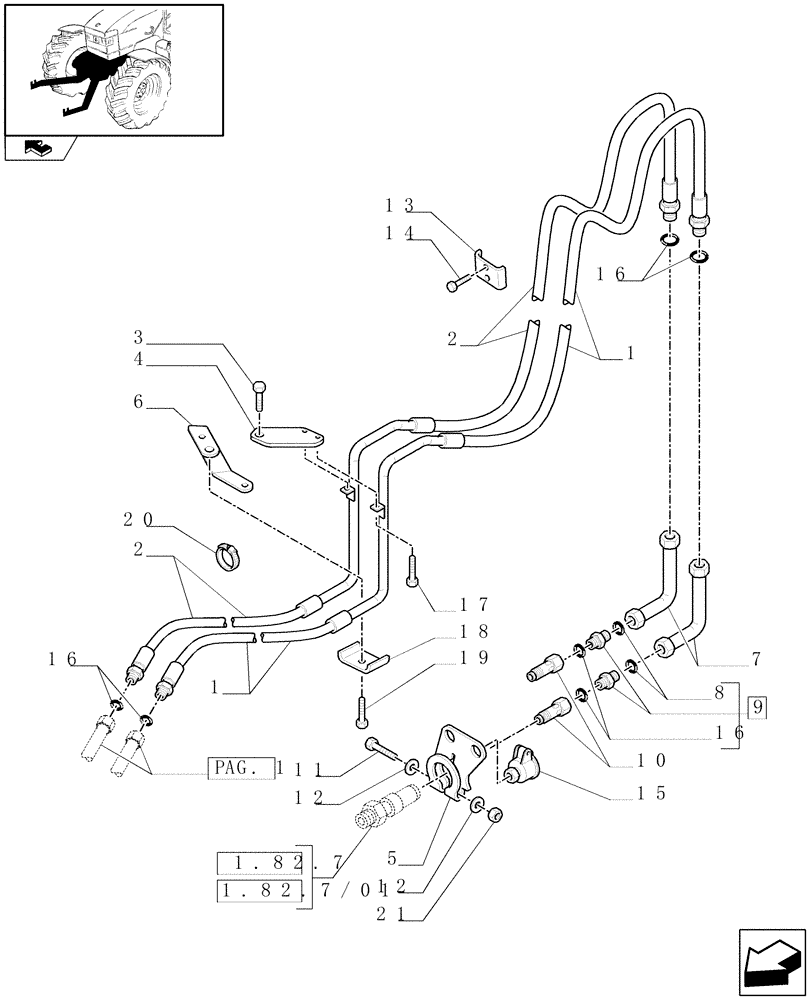

Схема запчастей Case IH PUMA 140 - (1.81.9/05[02]) - 4 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330172) (07) - HYDRAULIC SYSTEM
10
12
p
17
19
13
3
9
1
1
2
5
16
2
home
6
11
16
g
4
16
7
a
18
8
14
15
1.82.7/01
1.82.7
20
.
1
21
12

Артикул

Название

Примечание

Количество

1

47057275

HYD TUBE

Incl.16

1шт.

2

47057276

HYD TUBE

Incl.16

1шт.

3

86585947

BOLT,Hex, M16 x 20mm, Cl 8.8, Full Thd

1шт.

4

47057210

BRACKET

1шт.

5

47057026

RETAINING PLATE

1шт.

6

47057170

SUPPORT

1шт.

7

47057034

TUBE

2шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5185524

HYD CONNECTOR

2шт.

10

83972881

COUPLING

2шт.

11

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

1шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

47057073

CLAMP

1шт.

14

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

15

47057077

SOCKET

2шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

17

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

18

47057074

CLAMP,48.6mm x 30mm

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

20

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

21

86528579

NUT,M8 x 1.25

1шт.

Выбрано товаров: 21
