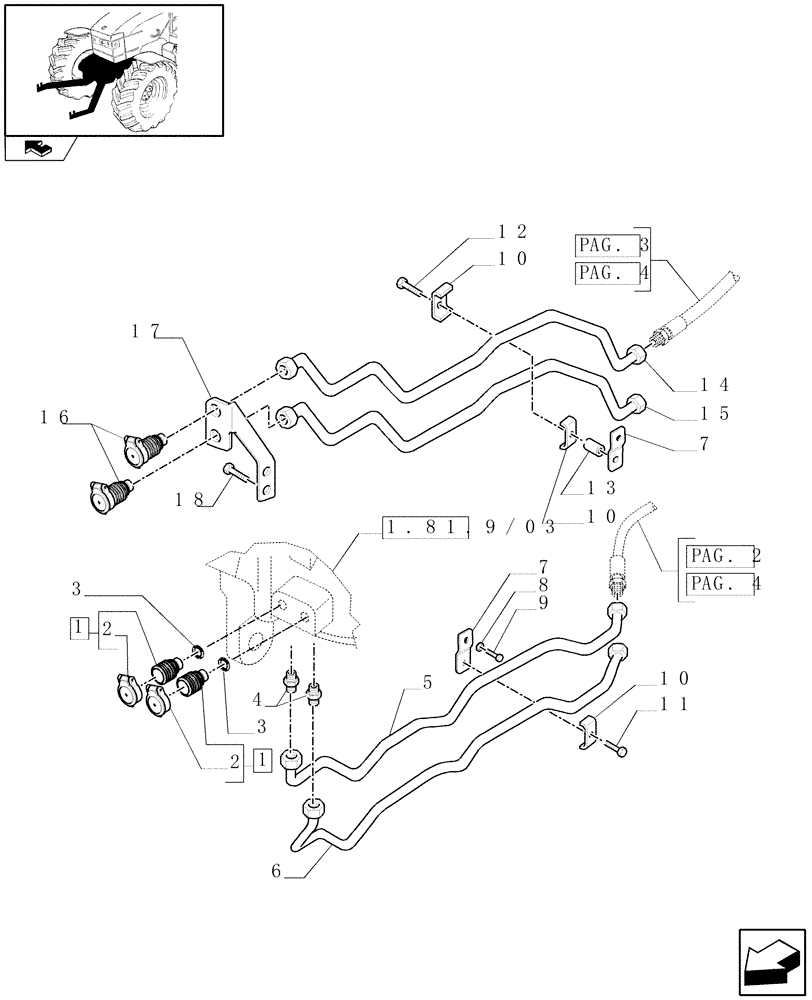

Запчасти Case IH PUMA 140 (1.81.9/04[01]) - 4 HYDRAULIC FRONT COUPLERS FOR INTEGRATED FRONT HPL (VAR.331172) (07) - HYDRAULIC SYSTEM

1

87301571

QUICK MALE COUPLING,M22 x 1.5

2шт.

2

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

2шт.

3

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

4

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22x1.5, 1"-14UN-2A

2шт.

5

87664275

HYD TUBE,16 mm OD

LH

1шт.

6

87664276

HYD TUBE,16 mm OD

LH

1шт.

7

47057070

CLAMP BRACKET

2шт.

8

14497101

WASHER,M20 x 37 x 3

1шт.

9

11124421

BOLT,Hex, M20 x 40, 8.8

1шт.

10

47057074

CLAMP,48.6mm x 30mm

3шт.

11

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

14

87664277

HYD TUBE,16 mm OD

Lift, RH

1шт.

15

87664278

HYD TUBE,16 mm OD

Sink, RH

1шт.

16

47056506

PUSH-PULL COUPLING

ASSY

2шт.

17

87664279

BRACKET

1шт.

18

11124421

BOLT,Hex, M20 x 40, 8.8

2шт.
