(1.81.9/03[01]) - INTEGRATED FRONT HPL - CYLINDERS AND SUPPORT - C6519 (VAR.330831-331831-332831-333831-330847-331847-332847-333847-334847-335847)

Запчасти Case IH PUMA 140 (1.81.9/03[01]) - INTEGRATED FRONT HPL - CYLINDERS AND SUPPORT - C6519 (VAR.330831-331831-332831-333831-330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM

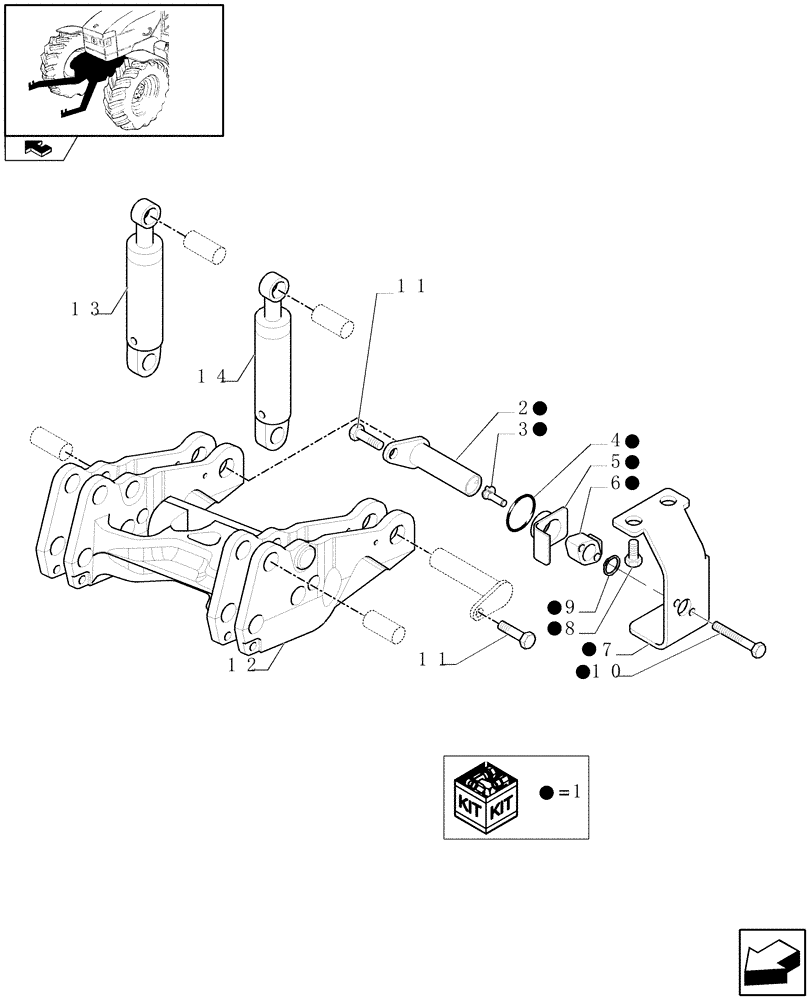

Схема запчастей Case IH PUMA 140 - (1.81.9/03[01]) - INTEGRATED FRONT HPL - CYLINDERS AND SUPPORT - C6519 (VAR.330831-331831-332831-333831-330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM
1
14
9
1
11
1
1
1
8
1
1
1
3
1
12
5
10
13
7
4
6
11
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87643927

SENSOR

ASSY, Turn Angle

1шт.

2

47057595

PIN,40mm OD x 104mm L

1шт.

3

5198408

CONTROL

1шт.

4

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

(M39.34 ID x 2.62 Thk)

1шт.

5

47057598

BRACKET

1шт.

6

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

7

87643926

SUPPORT

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

11087974

CIRCLIP,Ext., M8, DAC

1шт.

10

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

11

11103021

BOLT,Hex, M10 x 18mm, Cl 8.8, Full Thd

2шт.

12

87667283

FRAME

Incl.13, 14

1шт.

13

87667287

LIFT CYLINDER

RH

1шт.

14

87667286

LIFT CYLINDER

LH

1шт.
