(1.81.9/02[02]) - NOT INTEGRATED FRONT HPL WITH 6 SPLINES PTO - LIFT CYLINDER PIPES - C6335 (VAR.330813)

Запчасти Case IH PUMA 140 (1.81.9/02[02]) - NOT INTEGRATED FRONT HPL WITH 6 SPLINES PTO - LIFT CYLINDER PIPES - C6335 (VAR.330813) (07) - HYDRAULIC SYSTEM

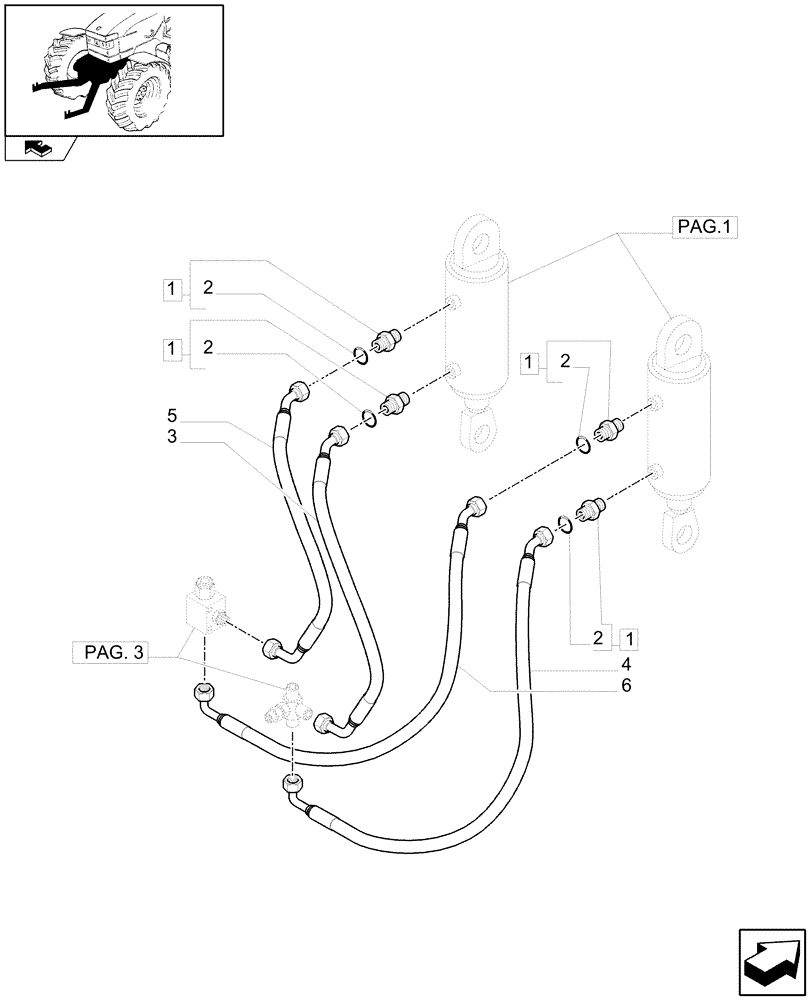

Схема запчастей Case IH PUMA 140 - (1.81.9/02[02]) - NOT INTEGRATED FRONT HPL WITH 6 SPLINES PTO - LIFT CYLINDER PIPES - C6335 (VAR.330813) (07) - HYDRAULIC SYSTEM
5
2
2
2
4
1
1
2
6
1
3
pag.1
1
pag. 3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126297

HYD CONNECTOR

M18 x 1,5, 11/16"-16

4шт.

2

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

3

47126291

FLEXIBLE HOSE

11/16"-16, 335MM, LH

1шт.

4

47126293

FLEXIBLE HOSE

11/16"-16, 560MM, RH

1шт.

5

47126292

FLEXIBLE HOSE

11/16"-16, 350MM, LH

1шт.

6

47126294

FLEXIBLE HOSE

11/16"-16, 760MM, RH

1шт.

Выбрано товаров: 6
