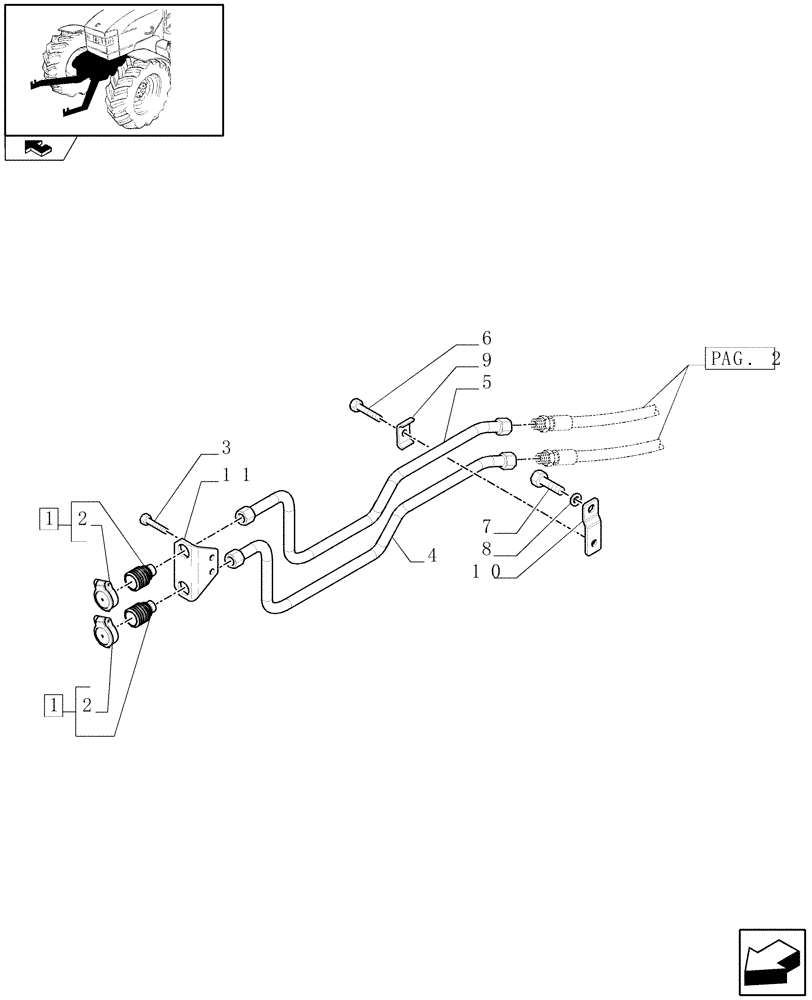

Запчасти Case IH PUMA 140 (1.81.9[01]) - 2 HYDRAULIC FRONT COUPLERS FOR NON INTEGRATED FRONT HPL - C6335 (VAR.330814) (07) - HYDRAULIC SYSTEM

1

47056506

PUSH-PULL COUPLING

2шт.

2

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

1шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

47057064

HYD TUBE

Sink, RH

1шт.

5

47057063

HYD TUBE

Lift, RH

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

11124421

BOLT,Hex, M20 x 40, 8.8

1шт.

8

14497101

WASHER,M20 x 37 x 3

1шт.

9

47057074

CLAMP,48.6mm x 30mm

1шт.

10

47057070

CLAMP BRACKET

, Serial Range: -C5796

1шт.

10

87603020

CLAMP,21mm HD, 110mm L

, Start Serial: D5796

1шт.

11

47056504

BRACKET

1шт.
