Запчасти Case IH PUMA 140 (1.80.7[01]) - PTO, CLUTCH - SHAFT CONTROL PTO ASSY AND CLUTCH PLATES (07) - HYDRAULIC SYSTEM

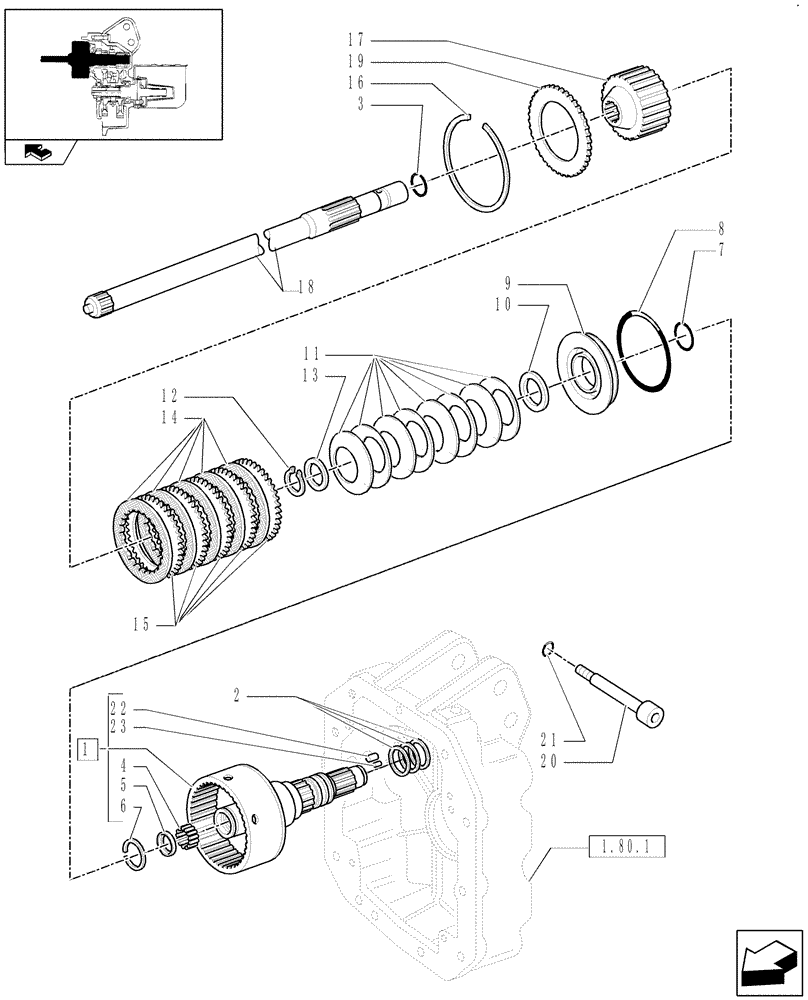

Схема запчастей Case IH PUMA 140 - (1.80.7[01]) - PTO, CLUTCH - SHAFT CONTROL PTO ASSY AND CLUTCH PLATES (07) - HYDRAULIC SYSTEM
6
14
home
9
16
20
2
11
4
3
23
7
22
1.80.1
15
19
18
17
21
13
10
8
5
1
12

Артикул

Название

Примечание

Количество

1

87374219

MAIN SHAFT,26T, 18T, 34T, 224.5mm L

1шт.

PUMA 155

1шт.

1

87305537

MAIN SHAFT

1шт.

PUMA 115 - 125 -140

1шт.

2

5175983

SEALING RING,46mm ID

SEALRING

3шт.

3

13398576

SNAP RING,M40, Int

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

12

5191305

CIRCLIP,54mm ID

1шт.

13

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

14

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

6шт.

15

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK 2.2MM

6шт.

16

5162251

CIRCLIP,142.5mm ID

1шт.

17

5198672

HUB,Z32

1шт.

PUMA115, PUMA125, PUMA140

1шт.

17

87374253

HUB,Z32

1шт.

PUMA155

1шт.

18

87372761

PTO SHAFT,674mm L

1шт.

19

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

20

5192537

HYD CONNECTOR,13mm D - 10mm D

1шт.

21

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

22

82009120

PLUG

D=10

1шт.

PUMA115, PUMA125, PUMA140

1шт.

22

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

PUMA155

1шт.

23

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

1шт.

Выбрано товаров: 32
